Napkin Folding 8.7

Converting • ID U0115

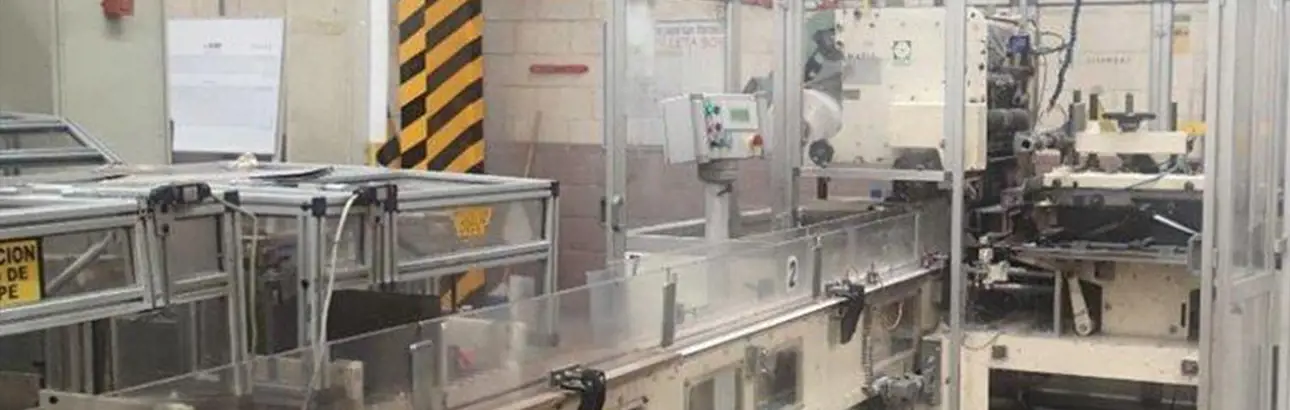

The Napkin Folding 8.7 line consists of two mechanical folding heads with the capability to produce quarter-fold products. Continuous embossing patterns can be utilized and automatic transfer units to feed in-line packaging machines. 

General information

Model Napkin Folding Line 8.7
Location Mexico
Operation status Line disconnected but available to see in production.
Availability Immediate

Technical details

Machine width 600 mm
Paper width: 2560 – 2800 mm

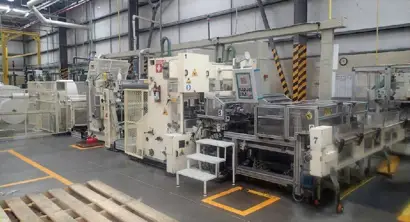

Line composition

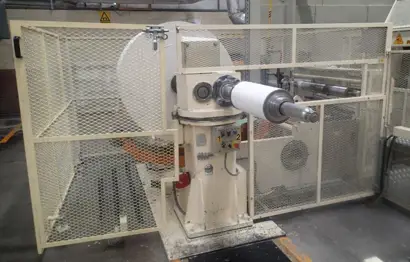

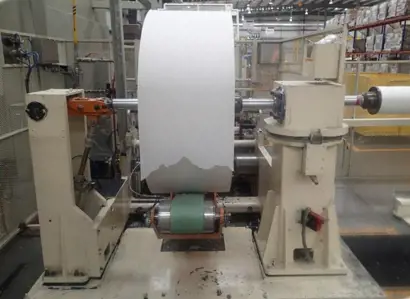

  • Unwinder  (max. parent reel diameter 1800 mm) 

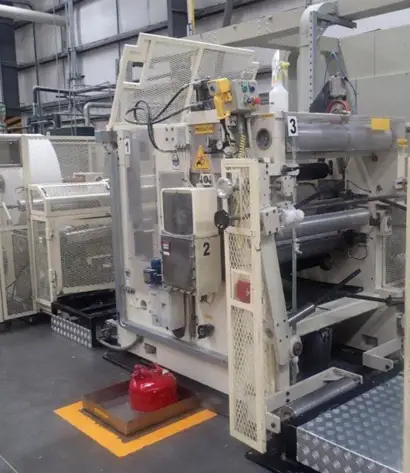

  • Embosser Paper/Steel

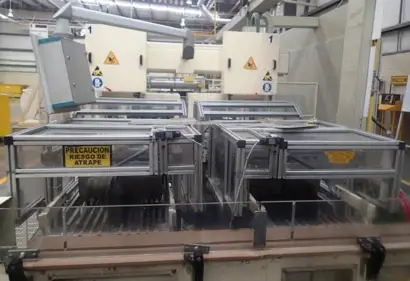

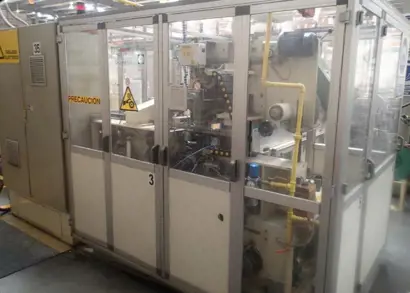

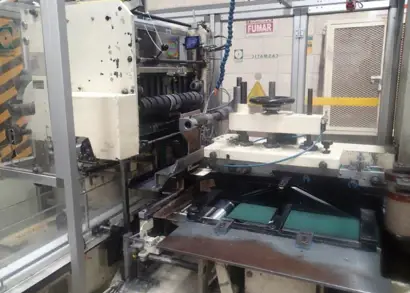

  • 2 Folding heads (2300 napkins/min)

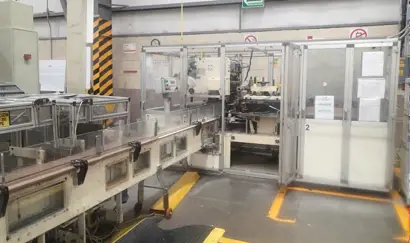

  • 2 Transfer units (110 pack/min)

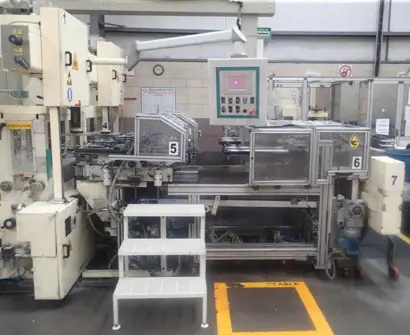

  • Casmatic CMF340 Wrapper (50 pack/min)
Electrical platform Siemens S7, AC motors
Type of products

260 x 260 Napkins

  • Internal core diameter 46 mm
  • Max log diameter 200 mm
  • Actual sheet length:
    • 4 blades 110 – 165 mm
    • 6 blades 78 – 109 mm
Speed/production rate 2300 napkin/min

Additional information

Optional/Upgrades available for installation
  • SPT098 TIP New safety systems
  • SPT101 TIP HMI Replacement
  • SPT112 TIP Firefighting system
  • SPT139 TIP Thermocameras
