Return energy back into the tissue process

Advantage ReTurne

Advantage ReTurne Hero 1296x412.png

Why waste useful energy, when it can be recovered? The normal value of the headbox jet power is around 1000 kW for a 5,5 meter wide tissue machine, depending on slice opening, width and jet speed. This means that we use approximately 7000-8000 MWh during a year. Learn more about the benefits of the Advantage™ ReTurne®.

Recover energy from the Headbox jet power

No impact on the tissue making process  

Easy to operate

Can operate in energy recovery or by-pass mode 

Recover energy from the headbox

The Advantage ReTurne energy recovery system is an efficient energy equipment for the tissue making process. It is raising energy efficiency to a new level, returning energy back into the process and cutting costs. 

Explore more!

Download the product brochure

Brochure

Raise energy efficiency to a new level 

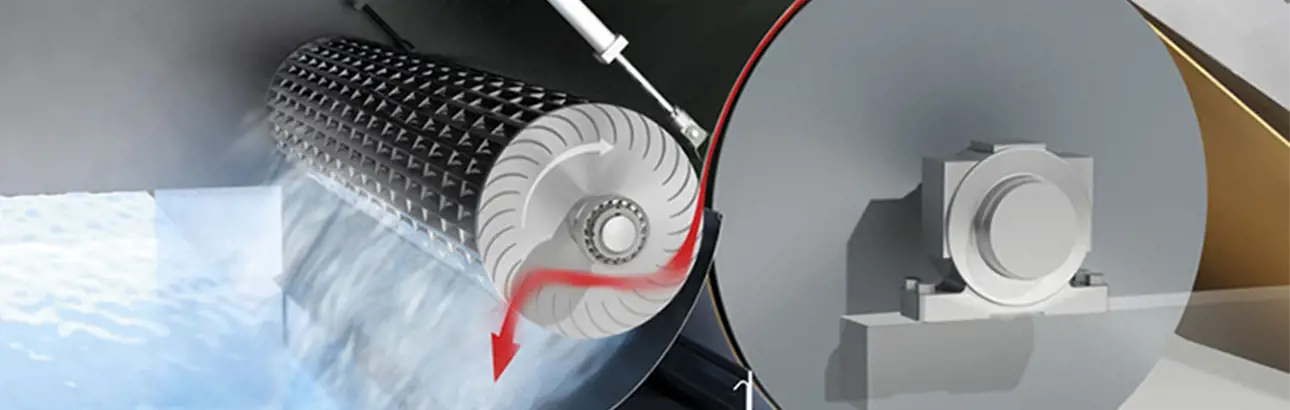

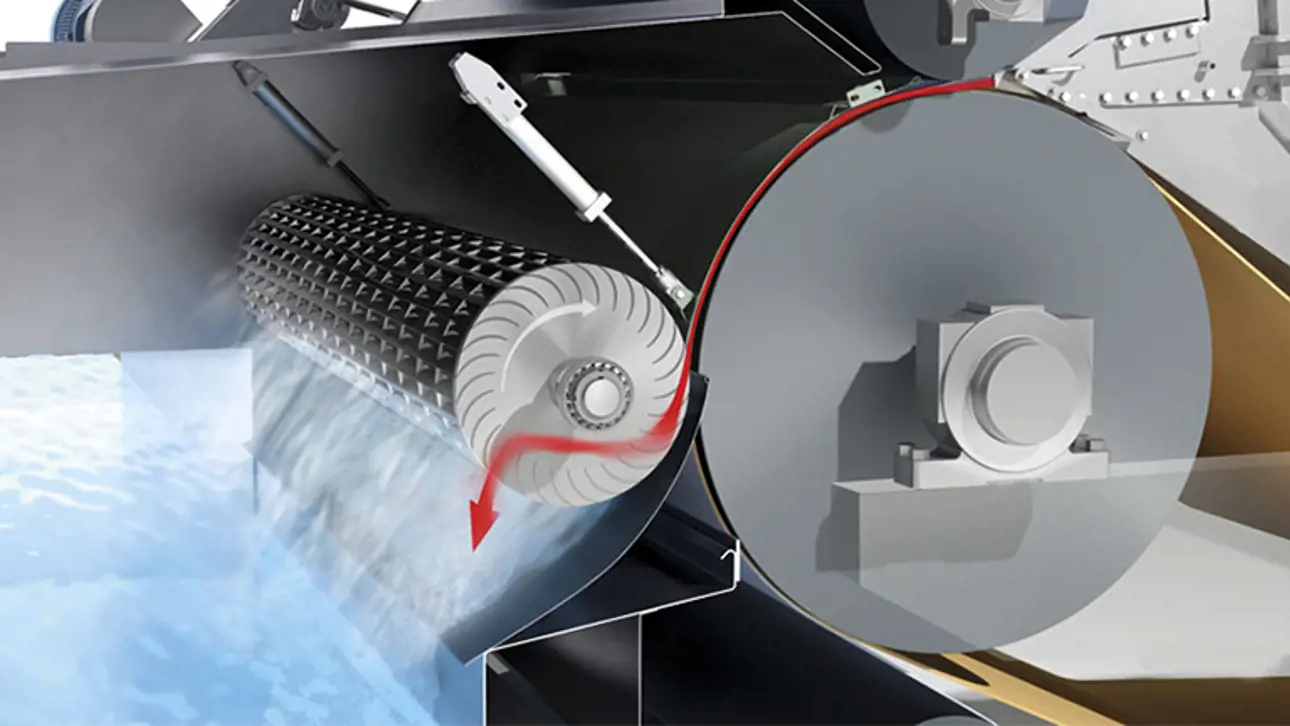

The heart of this energy saving innovation is a turbine, installed in the save all tray. The turbine is connected to a generator and located close to the headbox jet to recover as much energy as possible. When the water leaves the headbox and passes through the fabric, a guide plate controls the water flow.  

The guide plate ensures that the power of the water flow hits the turbine blades in the most optimize angle to reach the highest possible efficiency. The design of the of the guide plate ensures efficient and trouble-free de-watering and formation of the paper. It is also possible to move the guide plate into by-pass position which enables continuous production.

Saving potentials

With the Advantage ReTurne your can lower the environmental footprint in your tissue production by saving energy and reducing CO2. Get in touch with us and we can discuss more in depth what it could mean for your mill.

Contact us





CO2

Energy

Return the electrical power into the process

The turbine is connected to a generator which converts the water flow power to electrical power. The electrical power that is generated passes through a frequency converter before it supplies the DC bus and sectional drives with the recovered power.
