Understanding coating viscosity, rheograms and rheology problems
Jan 19, 2016
Coating rheology is measured with low shear (Brookfield) and high shear (Hercules) viscosity instruments. Viscosity is the resistance of a material to flow. Specifically, in coating rheology, it is the measure of the resistance of a coating formulation to an imposed flow.
Low-shear viscosity
Low-shear viscosity is the most often performed test in the control of the coating process. It is a simple test but very useful for determining operation of the coater. Brookfield viscosity is a good indication of coating solids, problems with the starch cooker operation, blade load pressure, coat weight control, and drying demand.
High-shear viscosity
High-shear viscosity is not usually done on the coater, but performed in the lab when testing different coating recipes or investigating coater runnability problems. It is a good indication of how the coating will respond to high shear rates under the blade tip. High high-shear viscosities can cause poor coat weight control, bleeding at the blade tip, and excessive blade loading, which can lead to poor runnability on the coater.
Coating rheograms
Figures 1 & 2 are illustrations showing how different types of coating recipes are affected by shear rate and the problems that can arise when viscosities get out of control.

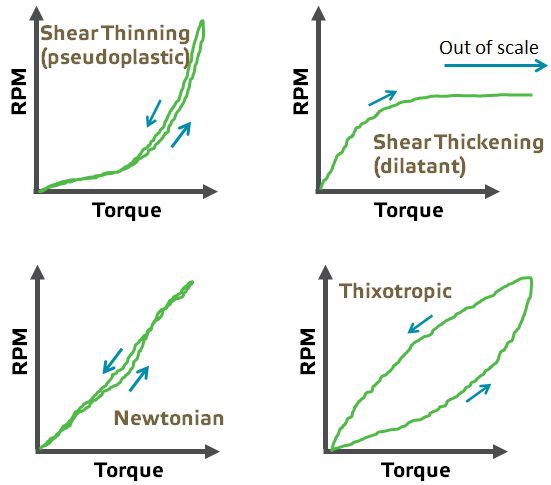

Figure 1 Characteristic rheograms
Figure 2 General guidelines for interpreting graphs (see area descriptions below)
Table of rheology and associated problems
| Area | Rheology | Problem(s) |
| A | High viscosity at low shear rates | Pumping and startup problems |
| B | High viscosity at high shear rates | Problems in screens and applicators |
| C | High viscosity at ultra high shear rates |
Blade bleeding and streaking Problems maintaining target coat weight Web breaks |
| D | Low viscosity at ultra high shear rates | Uneven coat weight |
| E | Low viscosity at all shear rates | Water retention problems |
Coating recipes vary by mill, so we don’t have specific information on them. The best resource for mill coating information is the Technical Services department in most mills.
