Neles™ butterfly valve, series L6, LW and LG

Neldisc™ high performance triple eccentric disc valves


Neles Neldisc series L6, LW and LG triple eccentric disc valves operate both in control and shut-off applications, with close to equal percentage characteristics and superior tightness.

Minimized pressure loss and energy costs of the process

Industry best valve capacity

Consistent performance even in the most difficult, changing process conditions

Shortest possible maintenance hours

Features

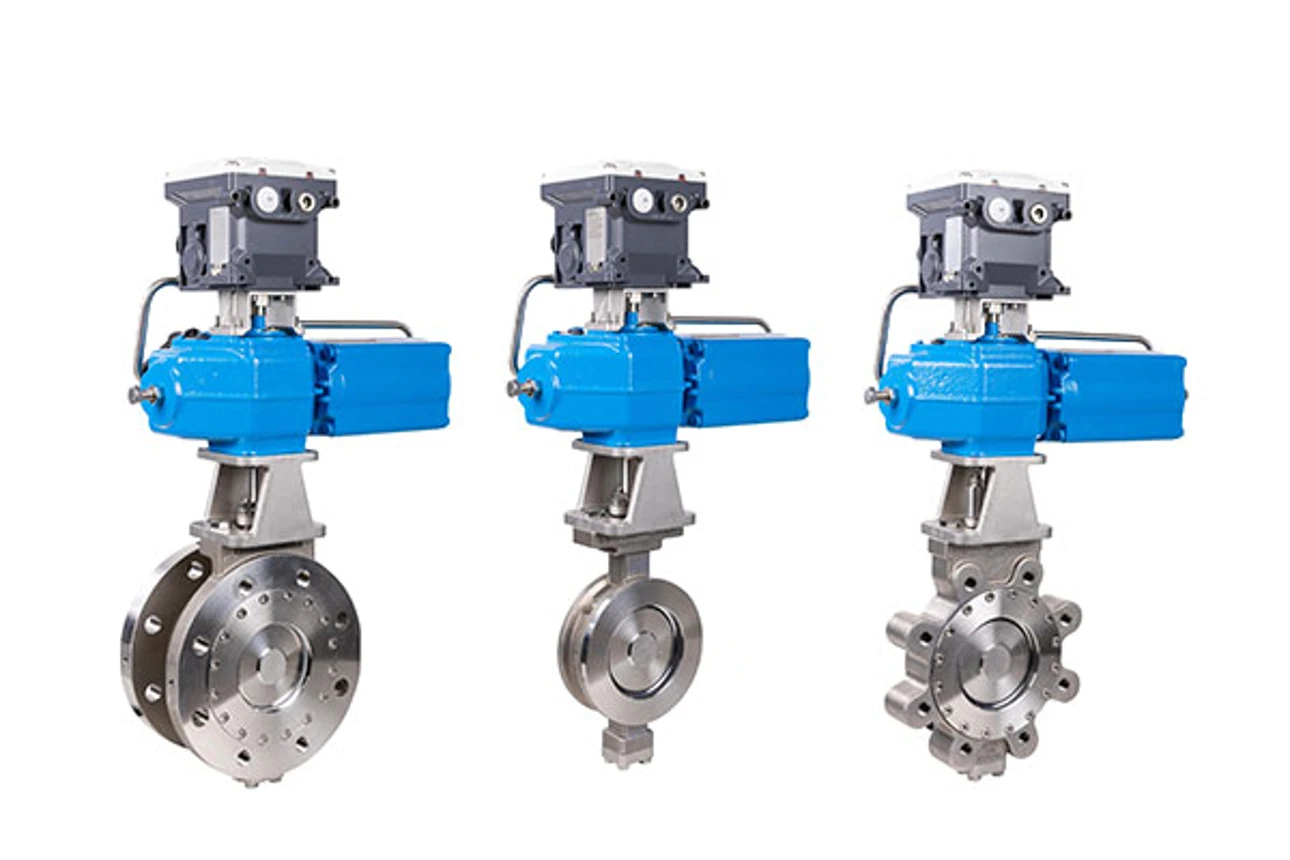

  • L6 double flanged, LW wafer type, LG lug type
  • Triple offset
  • Driveshaft with trunnion or through shaft (Model D only)
  • Zero leakage with true metal-to-metal sealing
  • One piece, full metal sealing without any resilient parts in the pipeline
  • High, long-lasting tightness
  • Unique, industry best disc valve control behavior with patented Q-disc feature – possible to mount even on existing valve units
  • Modular design minimizes the spare part inventory – the same spares can be used in multiple Neles Neldisc designs
  • Minimized actuator torque. Smaller actuator and lower piping stress
  • BAM certified construction for gaseous oxygen as an option
  • In-built thermal  and pressure compensation
  • Extended rangeability to 90 degrees control applications
  • Optimized spare part inventory
  • Suitable to dirty and abrasive services

Applications

  • Biotechnology
  • Geothermal applications
  • Pulp and paper
  • Water and wastewater
  • Refining
  • Oil and gas
  • Petrochemicals
  • ESD service
  • Industrial gas
  • Power generation
  • Food and beverages

Specifications

Series L6 LG  LW
Design Double flanged Lug Wafer
Size range 3" - 88" / DN80 - DN2200 3" - 40" / DN80 - DN1000 3" - 40" / DN80 - DN1000
Newest model scope 3" - 12" / DN80 - DN300 3" - 12" / DN80 - DN300 3" - 12" / DN80 - DN300
Pressure classes ASME 150-600 / PN10-50 ASME 150-300 / PN10-50 ASME 150-300 / PN10-50
Temperature range -200 °C … +600 °C / -330 °F…+1110 °F -200 °C … +600 °C / -330 °F…+1110 °F -200 °C … +600 °C / -330 °F…+1110 °F

Neles™ Q-Disc™ flow balancing trim

New, patent pending Q-Disc design features extreme flow balancing for control service. Dynamic torque effect from the flow has been significantly reduced allowing high pressure drop service. Design also provides market leading noise reduction even up to 12 dB. Read more
