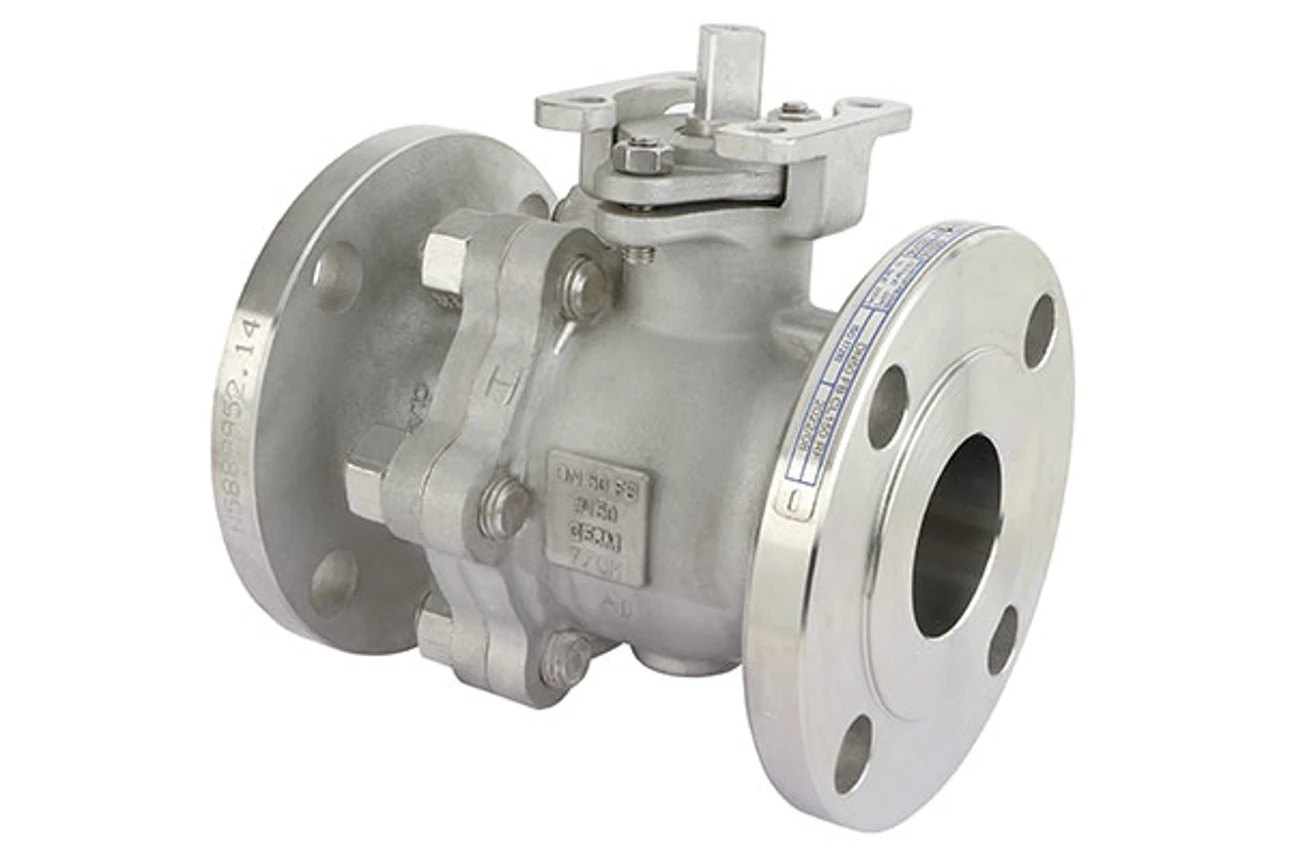

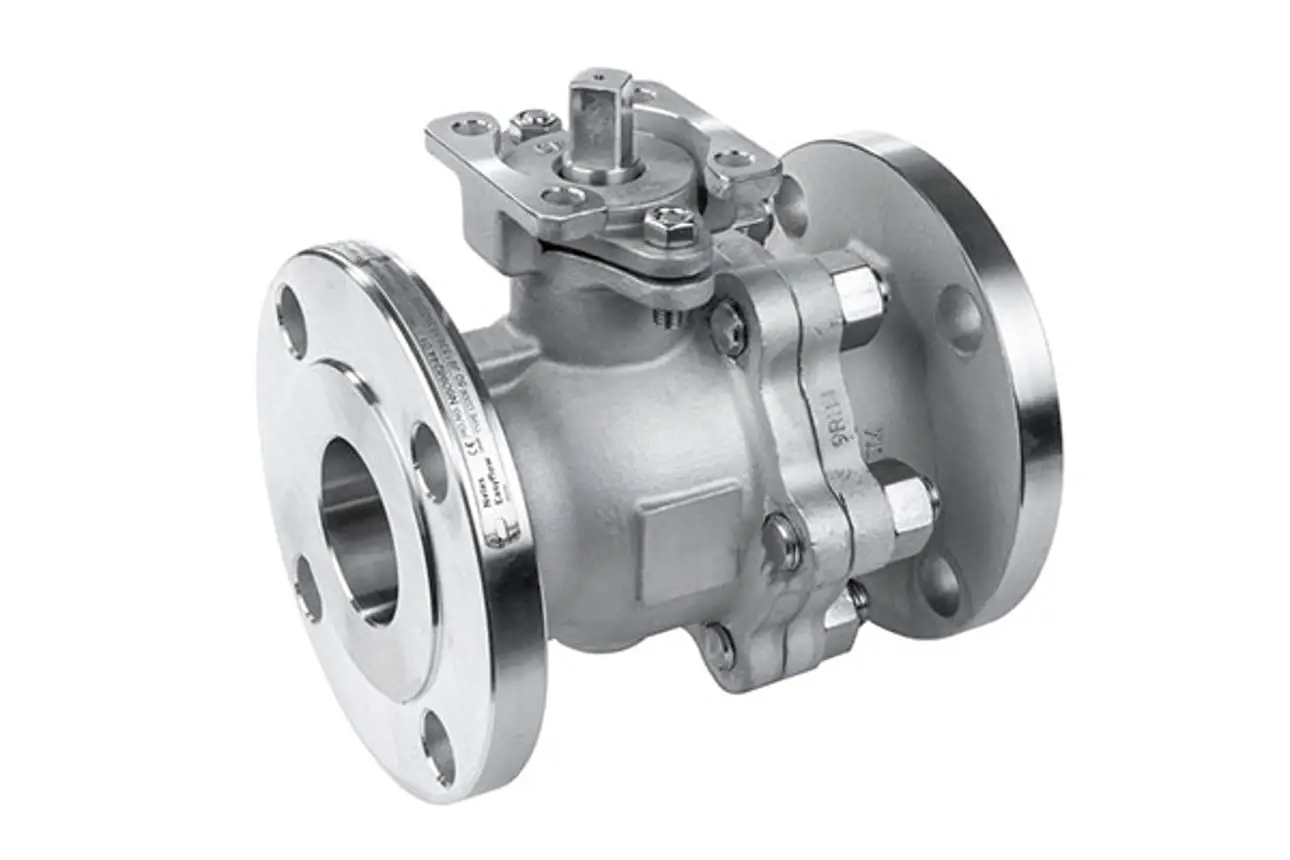

Neles Easyflow™ J9 series flanged floating ball valve

Rugged two-piece body construction with dual seal body design


Neles Easyflow J9 series full bore flanged floating ball valves are an economical option to our fully featured products. J9 series provides long, reliable life and in a rugged two-piece body construction.

Benefits

  • Long cycle life
  • Easy to maintain
  • Single source responsibility with reliable Neles actuators, switches, and controllers
  • Compliance with industry standards

Features

  • Unique low torque seat design provides bubble-tight shut-off through pressure and temperature cycles
  • ISO 5211 mounting pad for direct mounting of handle, gear operator, manual override, or actuator
  • Internal entry blow-out proof stem design
  • Live-loaded spring stem seal provides long cycle life and low emissions with minimal maintenance
  • An extremely tight fit drive between the stem and ball ensures accurate and repeatable shut-off and control
  • Anti-static grounding between ball and stem as well as stem and body
  • Lockable handle available
  • Cavity fill option minimizes media trapped inside the cavity
  • Every valve is factory tested, serialised & quality tagged prior to shipment

Applications

  • Chemical and petrochemicals
  • Pulp & paper
  • Food and beverage
  • Water & wastewater
  • Pharmaceutical
  • HVAC
  • Mining

Specifications

Nominal diameter: DN15 – DN200 (NPS 1/2 –8)
Pressure rating: Class 150 and Class 300
Flange accommodation: ASME B16.5
Face-to-face length: ASME B16.10
Vacuum rating: 29.91 inch Hg gauge (759.98 mm Hg gauge or 2x10-2 Torr or 4x10-4
psia or 99.99% vacuum)
Leakage: No visible leakage
Standards followed: ISO 17292, ASME B16.34, API 598, BS EN 12266
Safety level:  SIL-3 capable
Testing:  API 598
