Neles™ modular pocket feeder valve

Separator service valve for pulp and paper applications

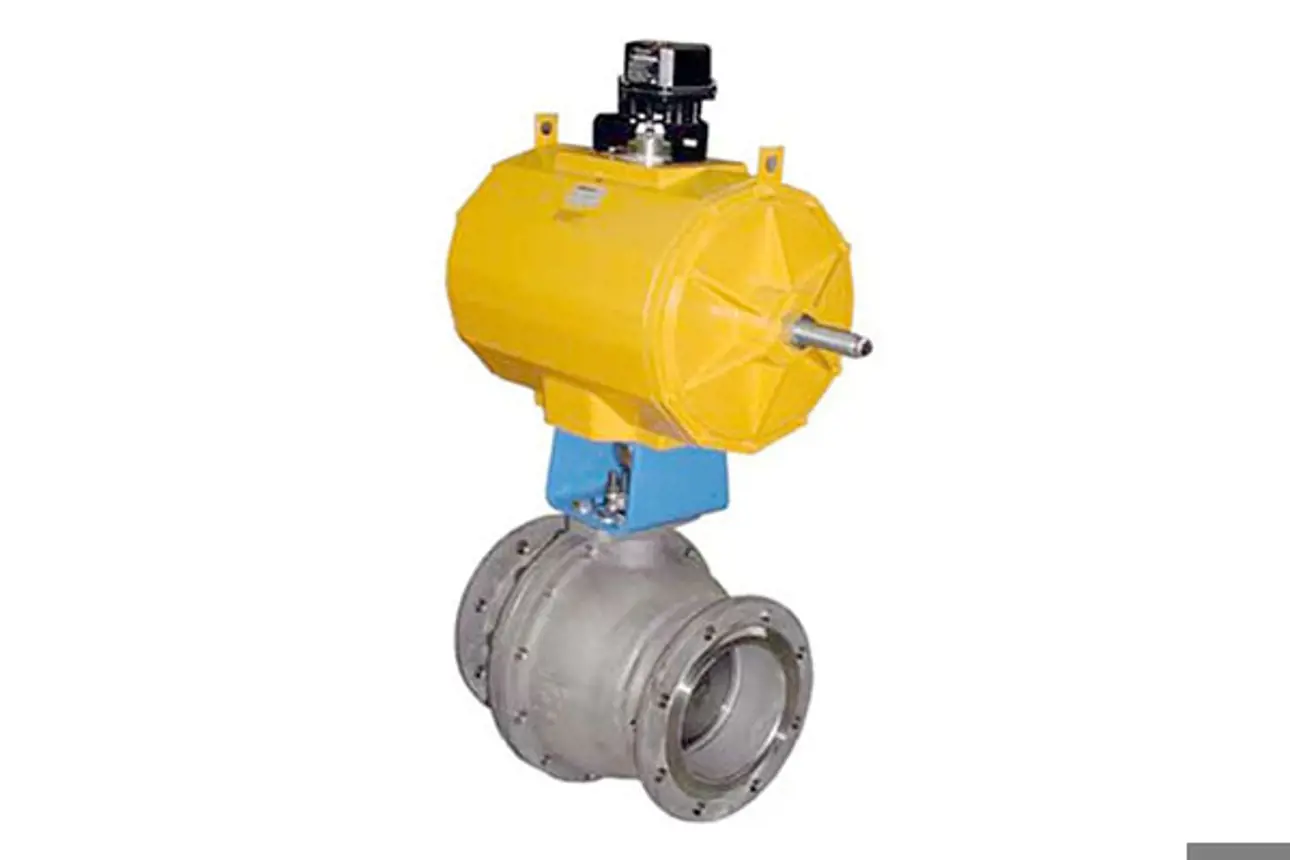

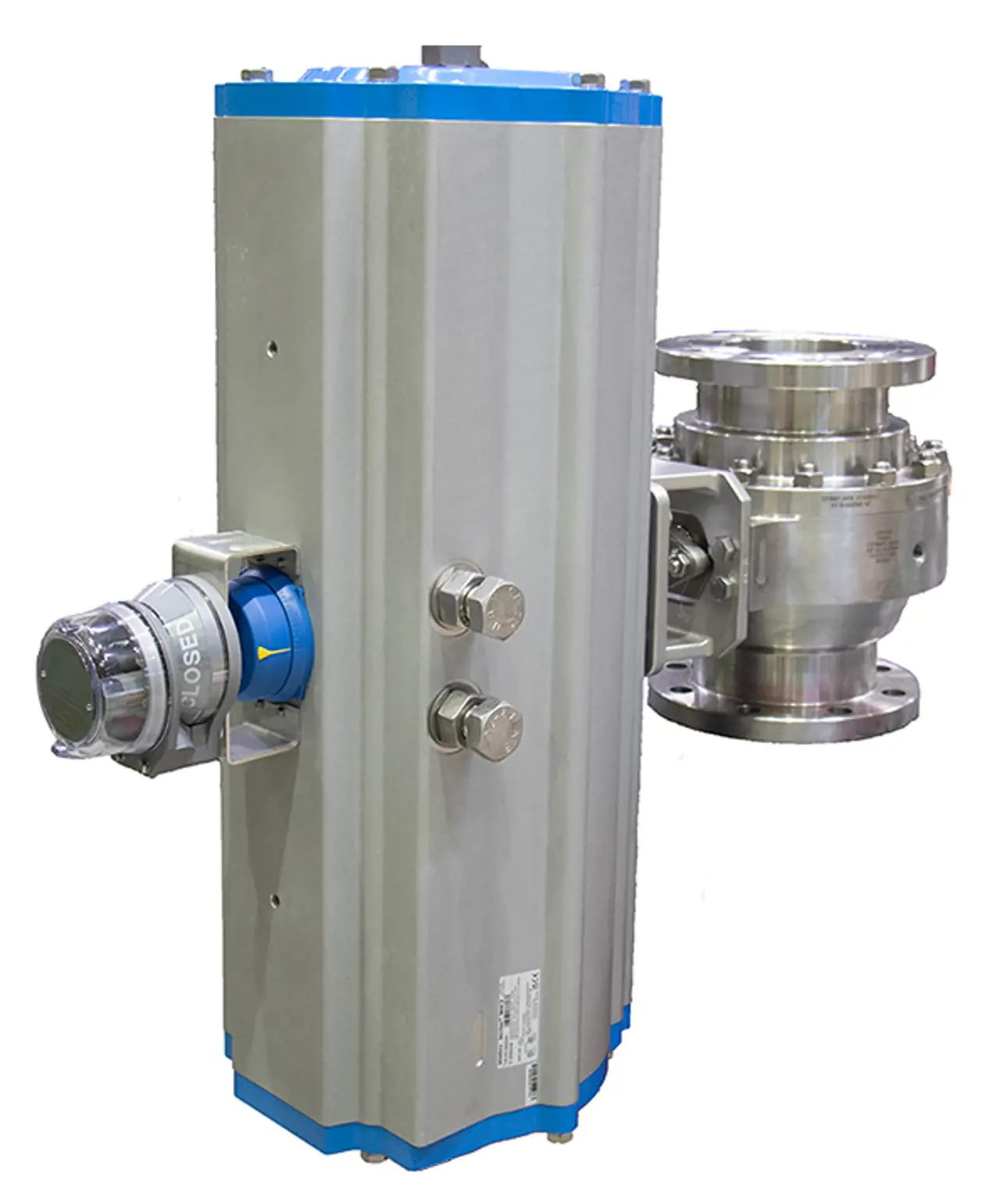

Neles M series pocket feeder valve for separator service in pulp and paper industry is designed for automatic removal of sand and other fine debris from the process. Typical applications are the chip chute circulation process of a continuous pulp digester and other junk traps. Complete unit consists of a full-bore ball valve, pneumatic actuator, limit switches and solenoids for purging the interior cavity of the valve.

Cost saving, no need for separate 2 on/off valves + 2 air evacuation valves

Simpler control logic system and less instrumentation

Solids proof design, including seats ensure long lasting operation

Efficient purging keeps valve clean from accumulating debris

Features

  • Solids proof design, seat design protecting against jamming
  • Body cavity equipped with purge connections to flush the cavity and ball during emptying cycle
  • Full 180° stroke
  • Can be operated at full process pressure, no through flow

Applications

  • Sand removal
  • Fines and debris removal

Specifications

Construction Flanged, seat supported, Pocket feeder construction, 180° operation ball valve
Size range DN 150 & 200 / 6" & 8"
Pressure classes PN 10 - 16 / ASME 150
Temperature range -50 to +250 °C / -60 to +480 °F
