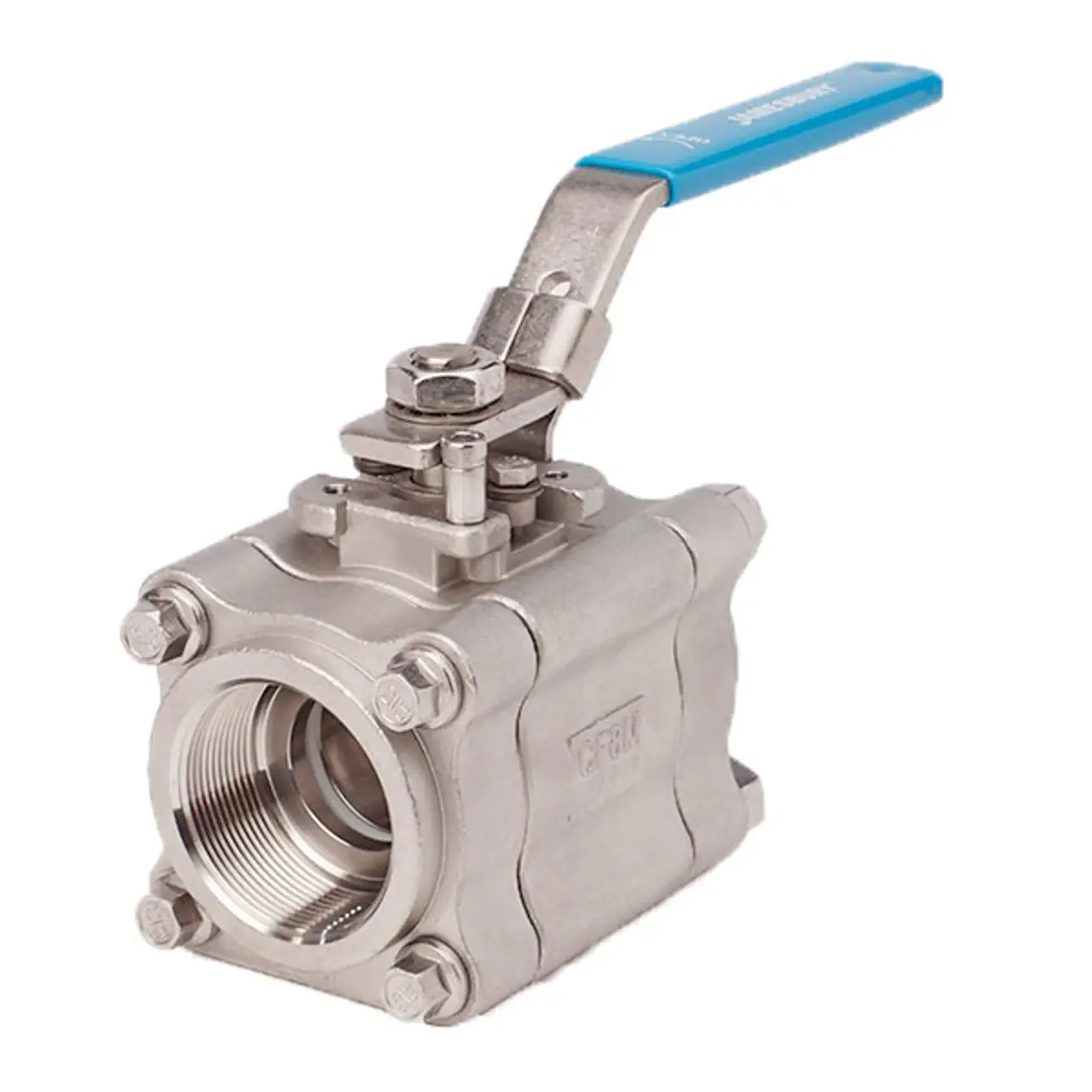

Jamesbury™ standard and full port ball valve, series 4000

Multiple end connection resilient seated 3 piece ball valve


Our best ball valve for many end connections

Features

  • Robust engineering design
  • Self relieving seat technology
  • Patented stem seal technology
  • ISO compliant bonnet
  • Multiple end connections (Threaded, socket weld, butt weld, custom)
  • High quality

Benefits

  • Very long service life
  • Bi-directional in hazardous media service
  • Low fugitive emissions
  • Bubble tight shut off
  • Automatable

Specifications

Size range 1/2” – 21/2” (DN 15 – 65) standard port
  1/2” – 2” (DN 15 – 50) full port
Temperature 260 °C / 500 °F
Pressure rating ANSI Class 800 or CWP to 2500 psi (172 bar) see literature
Materials Carbon steel, stainless steel, Monel, Hastelloy C materials
Standards Meets ISO-15848 and other emissions standards
