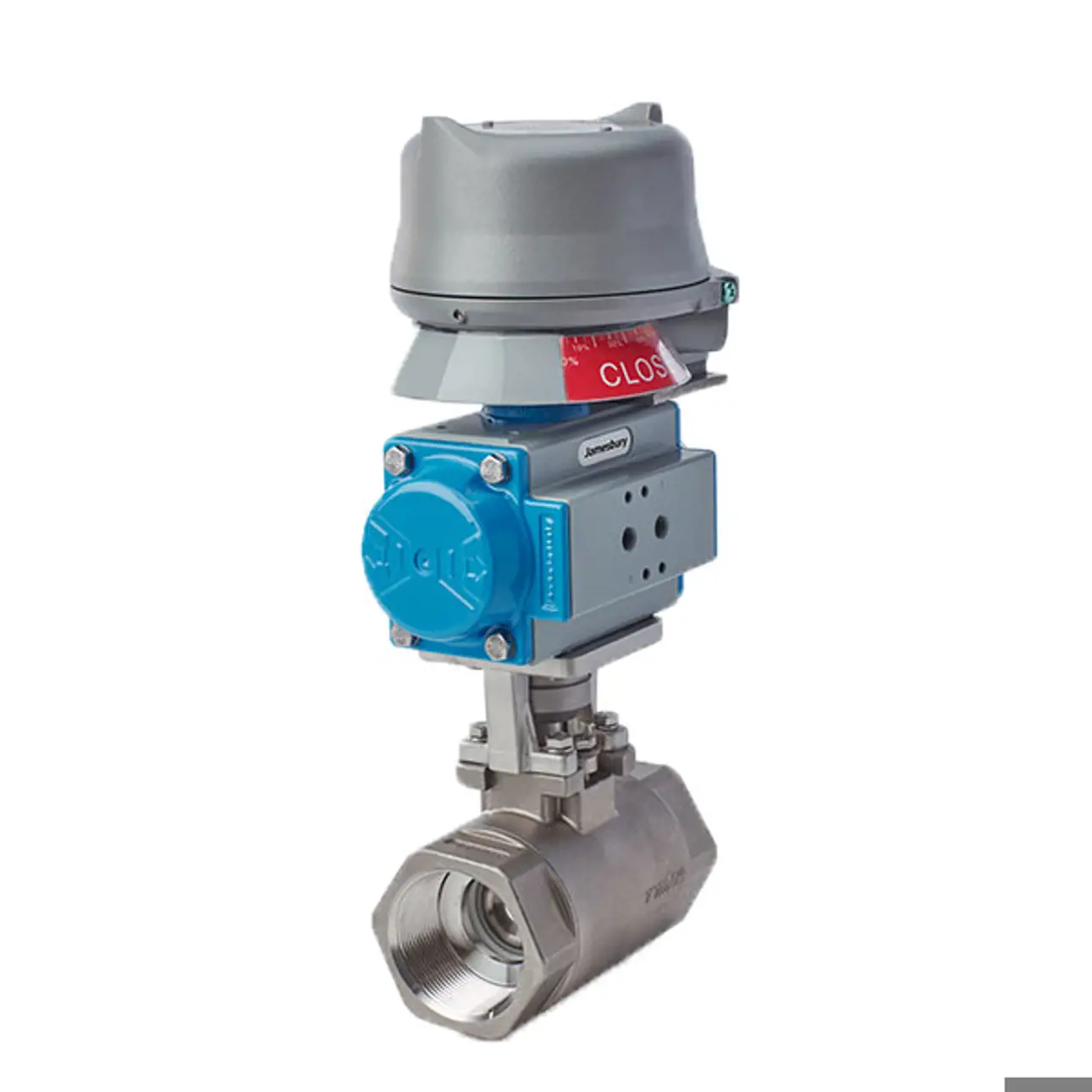

Jamesbury™ series Eliminator™ standard port ball valve

Thread end connection resilient seated 2 piece ball valve


Our best thread end 2 piece ball valve

Features

  • Robust engineering design
  • Self relieving seat technology
  • Patented stem seal technology
  • ISO compliant bonnet
  • High quality

Benefits

  • Very long service life
  • Bi-directional in hazardous media service
  • Low fugitive emissions
  • Bubble tight shut off
  • Automatable

Specifications

Size range DN8 – 50/ 1/4” – 2” standard port
Temperature 260 °C / 500 °F
Pressure rating ANSI Class 600 or CWP to 138 bar / 2000 psi
Materials Carbon Steel, Stainless Steel, Monel, & Hastelloy C body materials
Standards Meets ISO-15848 and other emission standards
