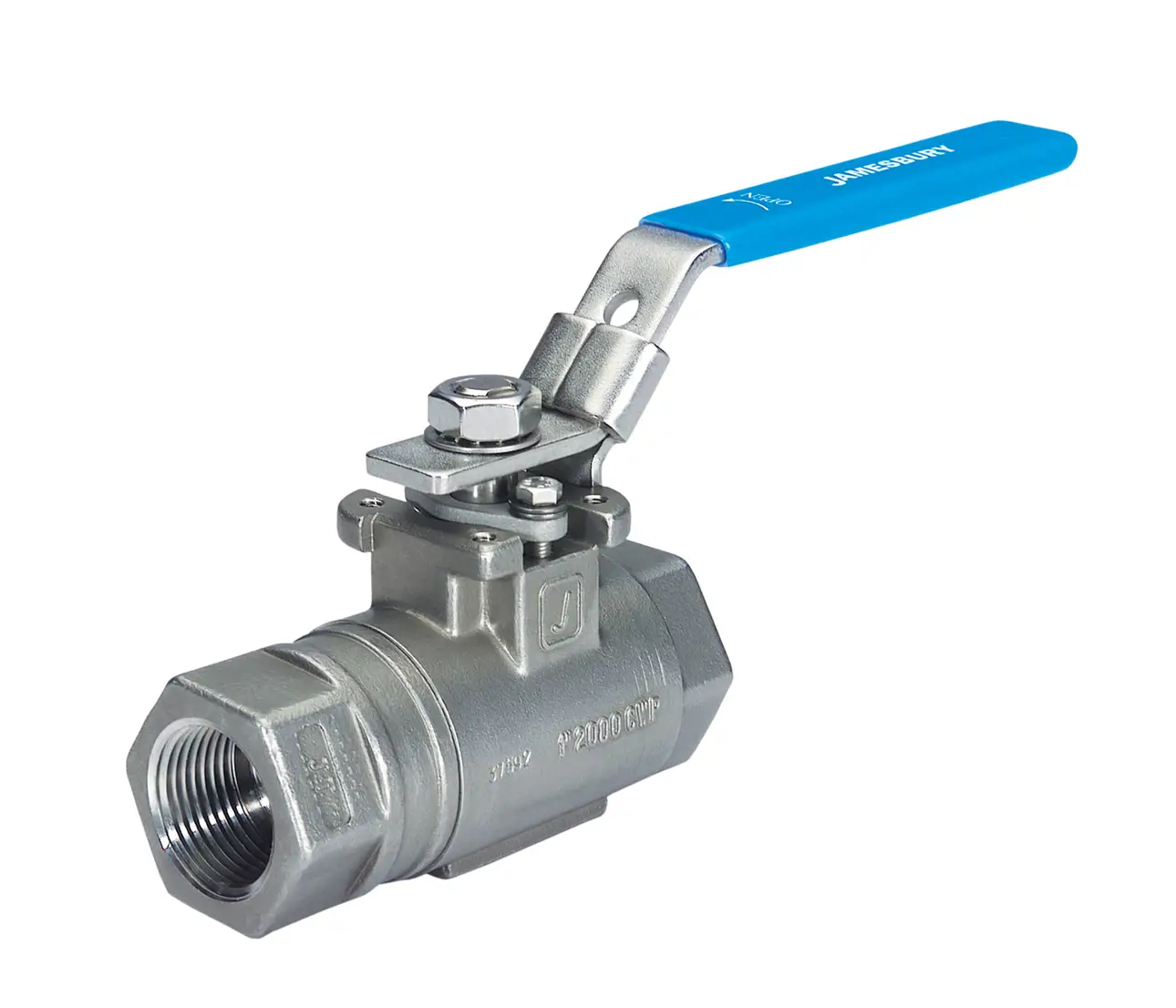

Jamesbury™ series A style standard port ball valve

Thread end connection resilient seated 2 piece ball valve


Our first teflon seated Zero Leak ball valve – Updated with latest technology

Features

  • Robust engineering design
  • Self relieving seat technology
  • Patented stem seal technology
  • ISO compliant bonnet
  • High quality
  • Unique face to face dimension

Benefits

  • Very long service life
  • Bi-directional in hazardous media service
  • Low fugitive emissions
  • Bubble tight shut off
  • Automatable
  • Direct replacement for vintage A style product

Specifications

Size range 1/4” – 2” (DN 8 – 50) standard port
Temperature 260 °C / 500 °F
Pressure rating CWP to 138 bar / 2000 psi
Materials Carbon steel, stainless steel, monel and Hastelloy C body materials
