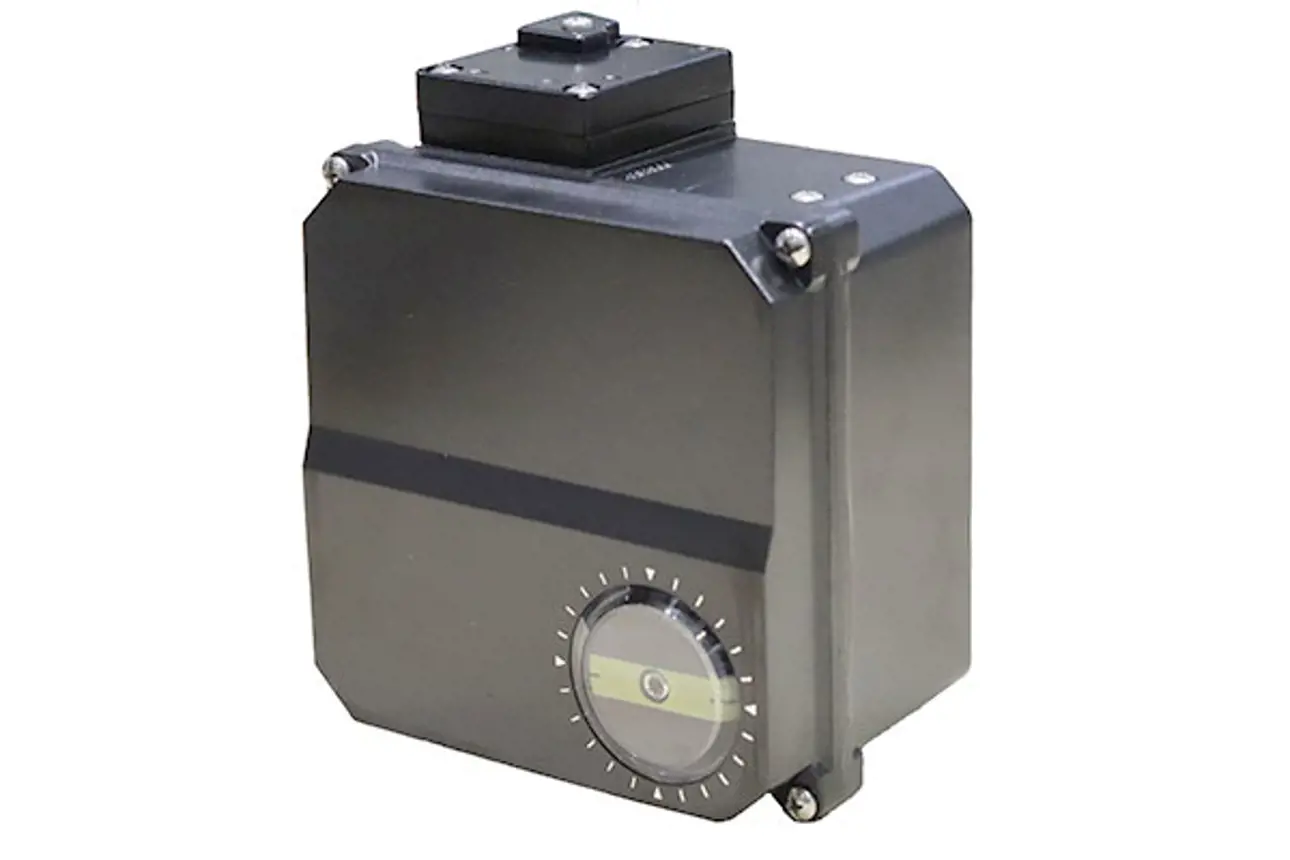

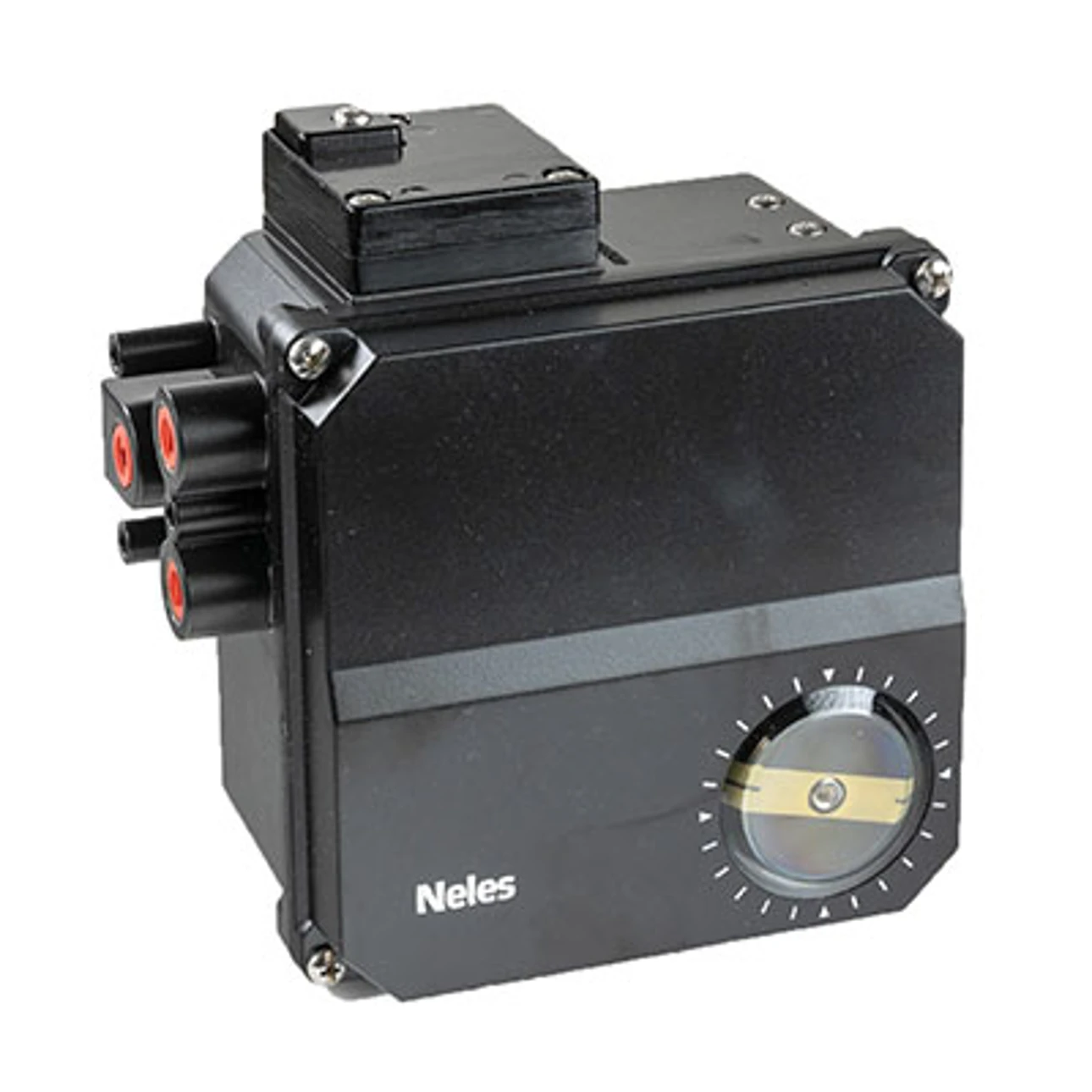

Neles™ NE700/NP700 positioner

Excellent repeatability and accuracy in a wide range of applications


Neles NE700/NP700 positioners are designed to operate on every control valve actuator and in all industry areas. They offer a rugged construction with few parts. A small moving mass and rigid mounting provide excellent resistance to vibration. NE700/NP700 positioners provide excellent repeatability and accuracy, with either rotary or linear control valves in a wide range of applications.

Excellent vibration resistance

Stable operation

Easy and fast to calibrate

Fast response times

Features

  • Rugged construction, few parts, small moving mass, compact design and rigid mounting provide outstanding vibration resistance.
  • Multiple pilot valve sizes are used to match positioner capacity compatibility with actuator stroke volume, minimizing response time.
  • Changes in supply pressure and valve load have minimal effect on positioner operation
  • Positioner can be set for direct or reverse-acting modes by simply turning around the changeover piece and feedback cam.


Specifications

SERIES NE 700


Type

Electropneumatic positioner

Input 4 - 20 mA
Temperature range

-25 to +120 °C / -15 to +248 °F

Protection class

IP 54 enclosure

SERIES NP 700


Type Pneumatic positioner
Input 0,2 - 1 bar
Temperature range -40 to +90 °C / -40 to +194 °F
Protection class IP 54 enclosure
