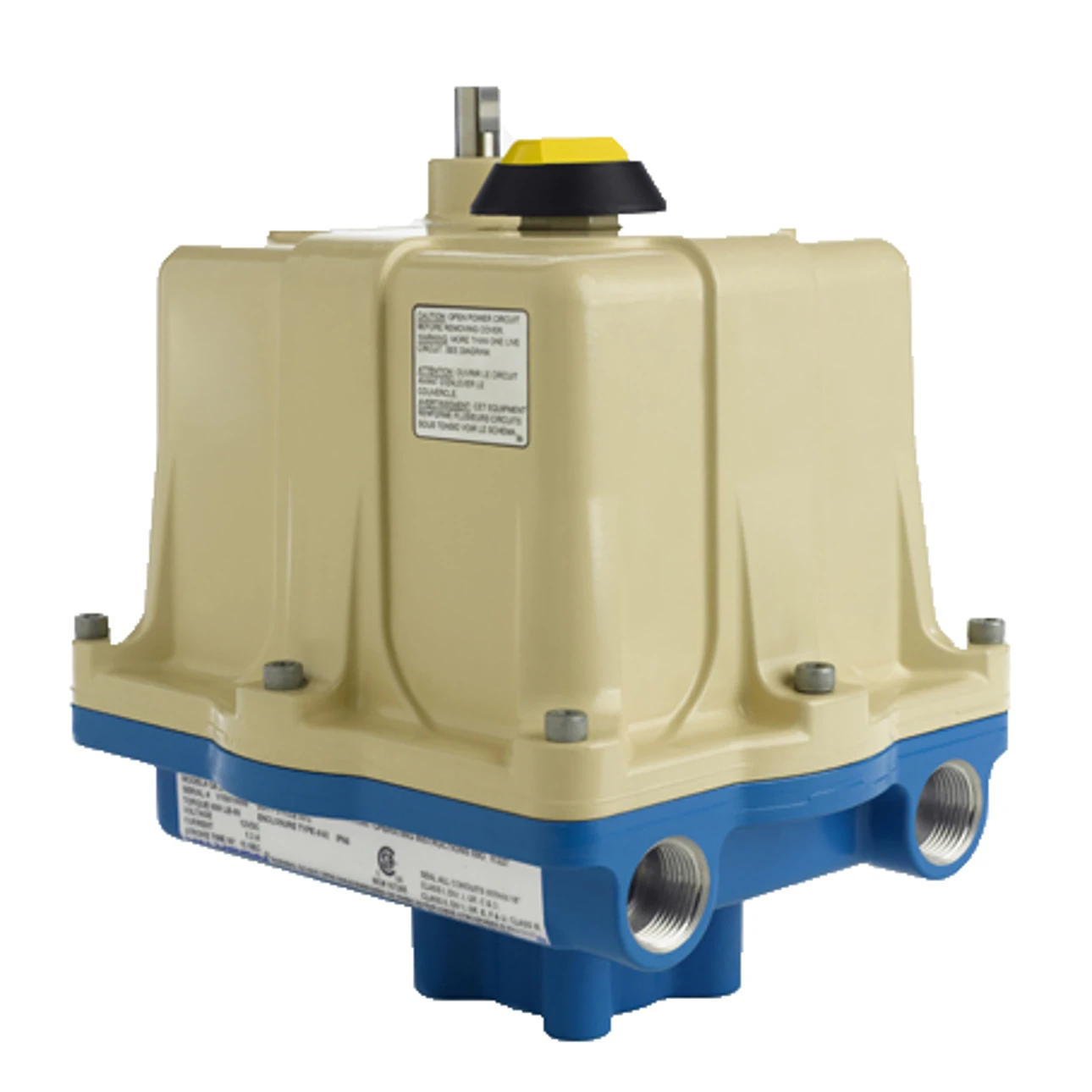

Valvcon™ QX-Series DC-powered electric actuator

Discontinued product

VALVCON QX-Series – DC-powered electric actuator.jpg

Discontinued product

Specifications

SERIES QX
TORQUE OUTPUT 17 - 339 Nm, 150 - 3000 lb-in, 12 - 250 lb-ft,
DUTY CYCLE 80% @ 40°C / 104°F
OPERATION Reversing
ENCLOSURE*) NEMA 4/4X/7&9
TEMPERATURE RANGE -40°C to 66°C / -40°F to 150°F
VOLTAGE 12VDC, 24VDC
  *) CSA (C US) Certification standard; Class I, Div. 1, Gr. C & D; Class II, Div.1, Gr. E, F & G; Class III



Downloads
