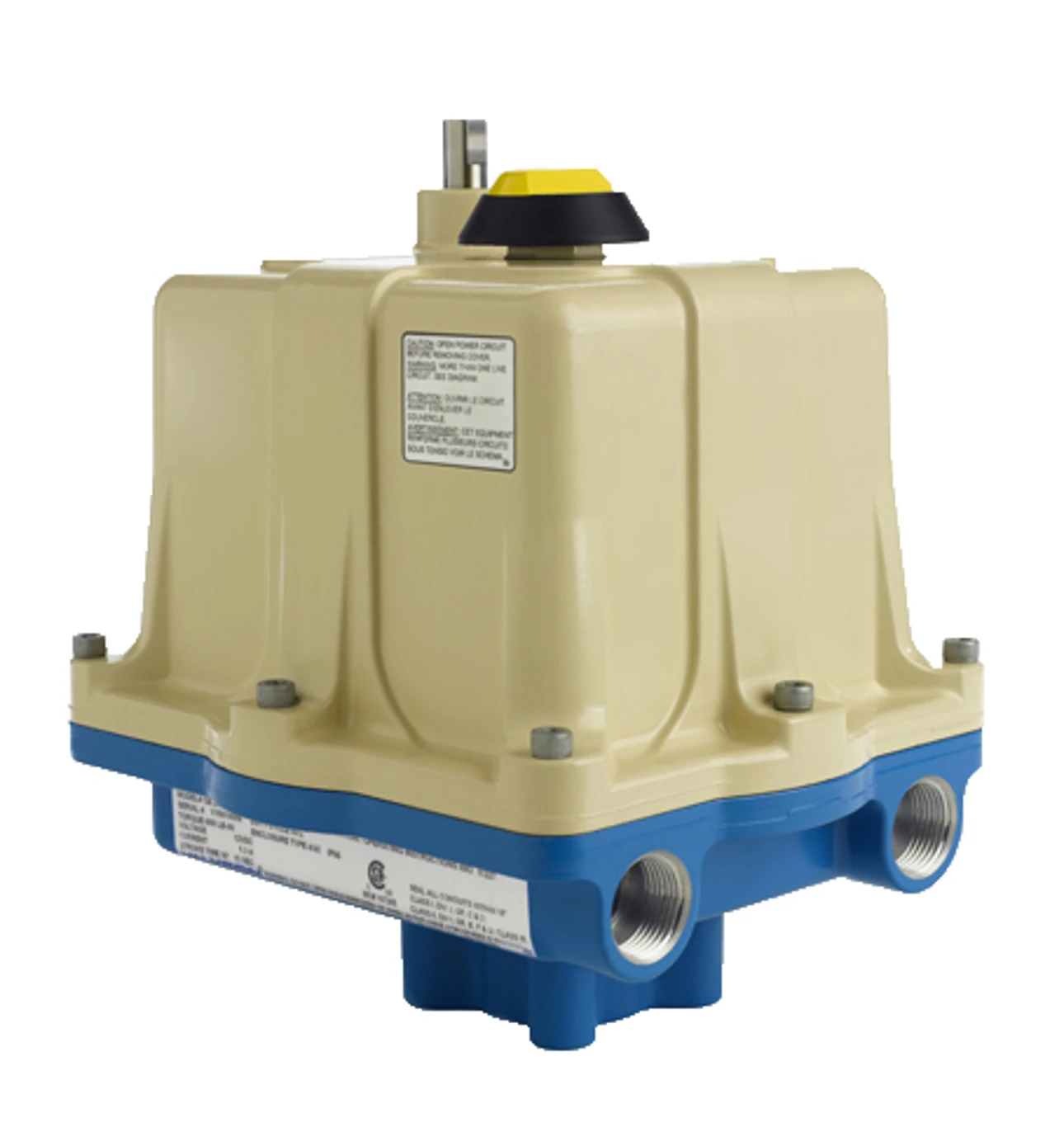

Valvcon™ Q6-Series oil and gas field electric actuator

VALVCON Q6-Series – oil and gas field electric actuator.jpg

Discontinued product

Discontinued product

Specifications

SERIES Q6
TORQUE OUTPUT 68 Nm, 600 lb-in, 50 lb-ft
DUTY CYCLE 80% @ 40°C / 104°F
OPERATION Reversing
ENCLOSURE*) NEMA 4/4X/7&9
TEMPERATURE RANGE -40°C to 66°C / -40°F to 150°F
VOLTAGE 12VDC
  *) CSA (C US) Certification standard; Class I, Div. 1, Gr. C & D; Class II, Div.1, Gr. E, F & G; Class III
