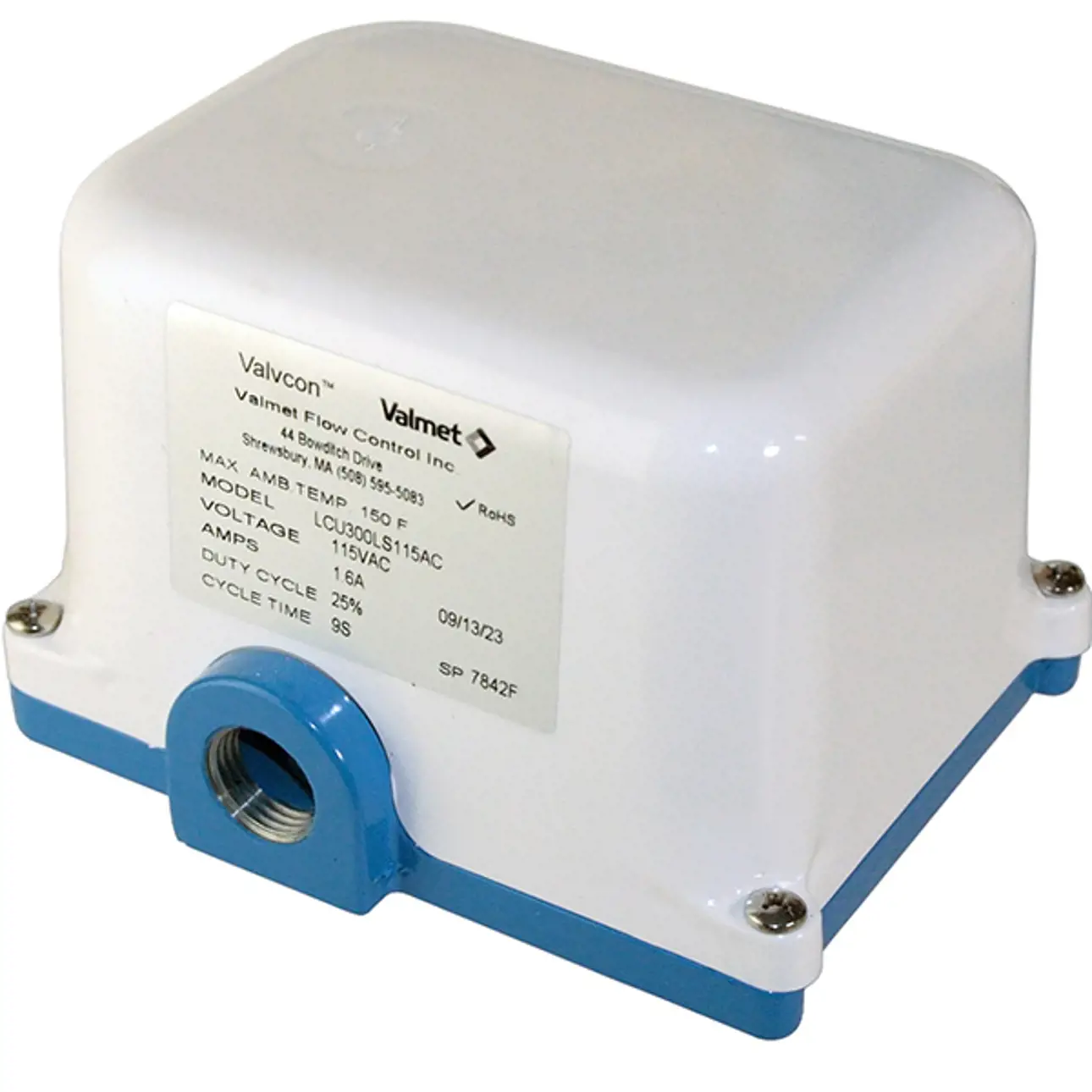

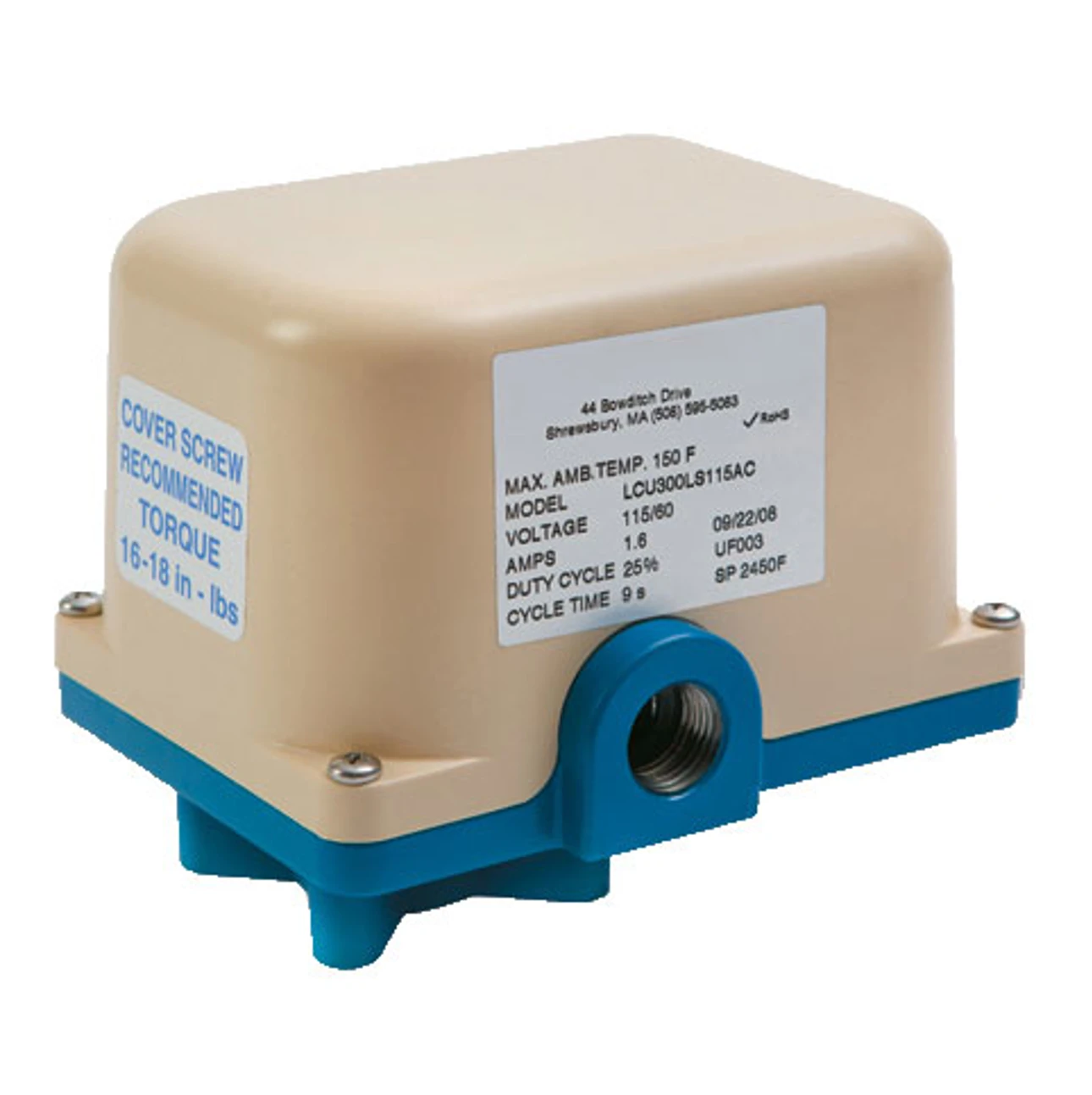

Valvcon™ LCU-Series economical unidirectional electric actuator
Economical unidirectional actuator for ball valve applications
![valvcon-lcu-actutator.jpg](/globalassets/flow-control/product-images/actuators/electric-actuators/valvcon-lcu-actutator.jpg?width=1290&format=webp&quality=70)
The Valvcon LCU-Series actuator is designed to be one of the most cost effective units available; reliable and inherently low-maintenance, it provides long-term efficiencies beyond its initial low price. LCU-Series actuators are designed for applications that require single direction actuation.
Features
-
Compact and lightweight
-
Available in AC and DC models
-
Economical unidirectional on/off actuation
Common use cases
-
On/Off service
-
Small ball valves
Applicable industries
-
Water/Wastewater
-
Food and beverage processing
-
HVAC
-
Power generation (gas line valves)
Specifications
SERIES | LCU |
TORQUE OUTPUT | 17-68 Nm, 150-600 lb-in, 12-50 lb-ft |
DUTY CYCLE | 25% or 80% |
OPERATION | Undirectional |
ENCLOSURE | NEMA 4/4X |
TEMPERATURE RANGE | -40°C to 66°C / -40°F to 150°F |
VOLTAGE | 24VAC, 115VAC, 230VAC duty cycle 25% |
12VDC, 24VDC duty cycle 80% |
