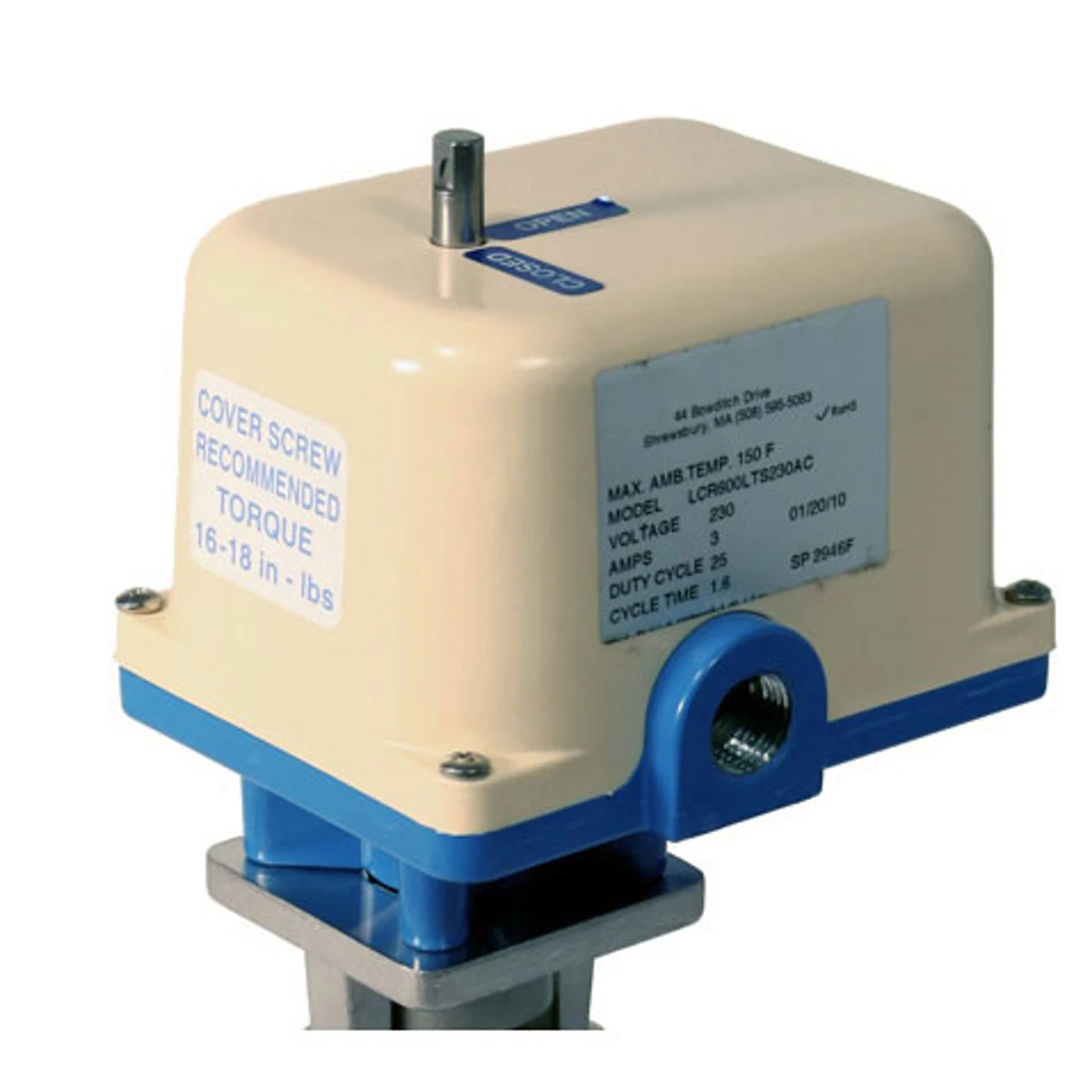

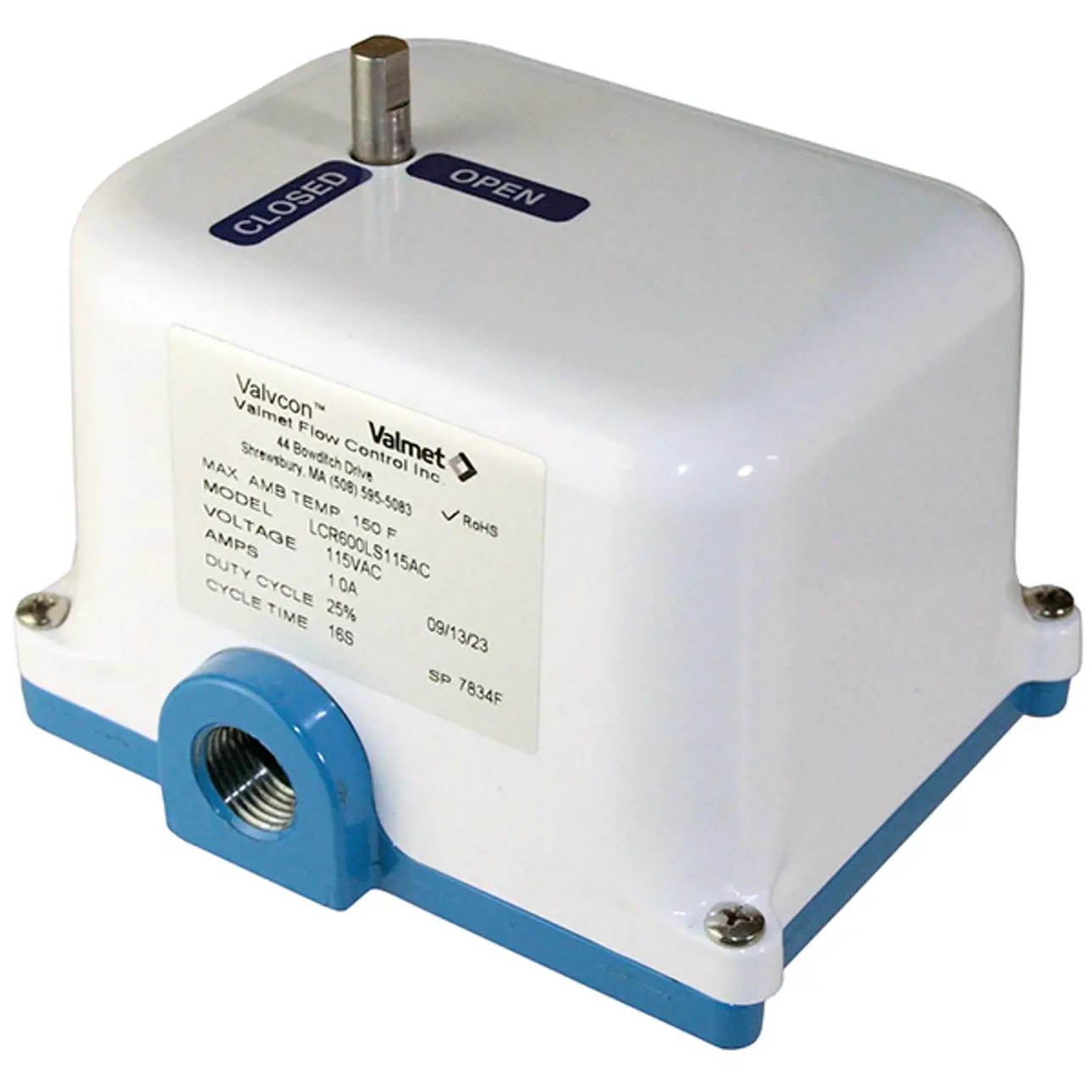

Valvcon™ LCR-Series economical reversing electric actuator

Economical reversing actuator for valve and damper applications


The Valvcon LCR-Series actuator is designed to be one of the most cost effective units on the market today. And because Valvcon electric actuators are reliable and inherently low-maintenance units (compared with pneumatic alternatives), you'll realize long-term efficiencies beyond the initial low price.

Long-term reliability

No maintenance required

Low cost of ownership

Easy installation and set up

Features

  • Compact and lightweight
  • Available in AC and DC models
  • Economical reversing on/off actuation

Common use cases

  • On/Off service
  • Butterfly valves requiring reversing actuators

Applicable industries

  • Water/Wastewater
  • Food and beverage processing
  • HVAC
  • Power generation (gas line valves)

Specifications

SERIES LCR
TORQUE OUTPUT 17-68 Nm, 150-600 lb-in, 12-50 lb-ft
DUTY CYCLE 25% or 80%
OPERATION Reversing
ENCLOSURE NEMA 4/4X
TEMPERATURE RANGE -40°C to 66°C / -40°F to 150°F
VOLTAGE 24VAC, 115VAC, 230VAC duty cycle 25% 12VDC, 24VDC duty cycle 80%
