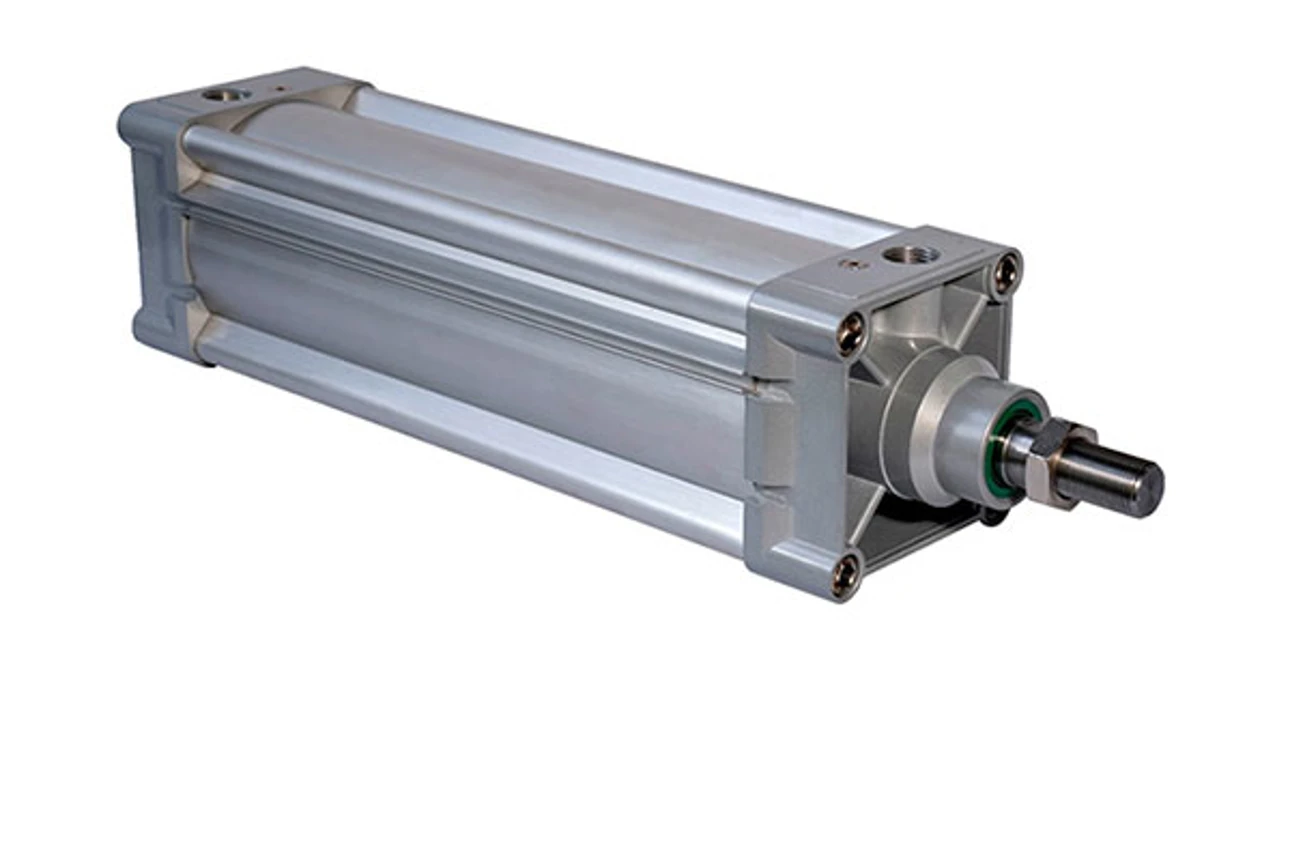

Neles Easyflow™ piston-barrel linear actuators, series SC

Designed for fast efficient operation of gate valve, globe valve, damper and other linear type valves


Neles Easyflow SC series piston-barrel linear actuator combine the benefits of high cycle life, a rugged construction and an accordance with ISO 15552 & VDMA 24562 with unique range of feature and option. They are specially designed for fast operation of gate valve, globe valve, damper and other linear type valves.

Features and benefits

  • Cylinder barrel from extruded profile aluminium with micro honed for extremely low friction.
  • Cushioning adjustable at both ends.
  • Safe & easy maintenance
  • Suitable for various services
  • Rugged design
  • Wide thrust range.
  • Permanent magnet is standard.



Application

  • Factory automation & general process applications
  • High cycle life control and on-off applications
  • Emergency shutdown.

Technical specifications

Series: Pneumatic piston-barrel type linear actuator
Version: Double acting (For spring return version consult Neles)
Max. operating pressure: 10 bar

Force range:

69N to 7850 N
Temperature range: -20 to +80 °C (For high & low temp. version, consult Neles)
Protection class: IP 67

Mounting interface:

ISO 15552 VDMA 24562

Certificate:

SIL 3 capable
