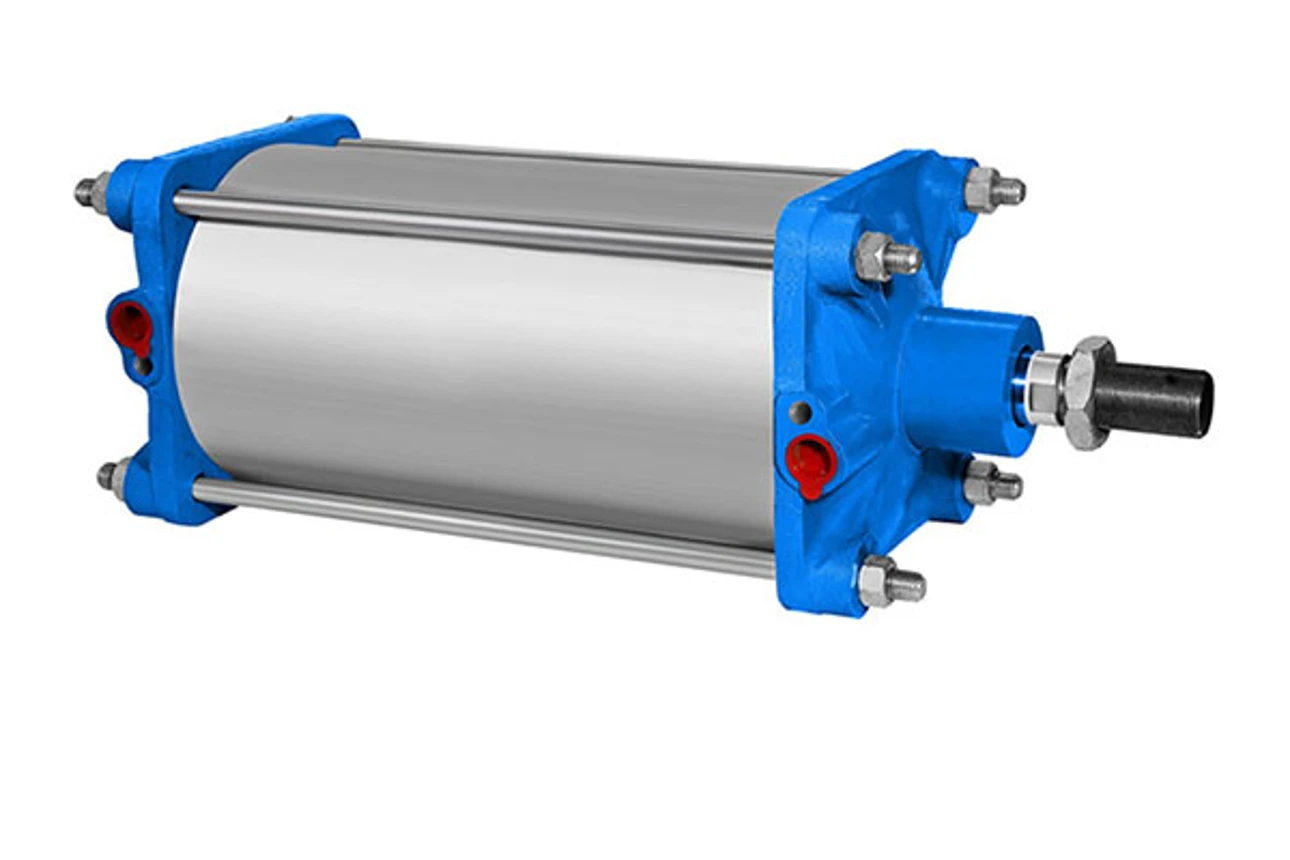

Neles Easyflow™ piston-barrel linear actuators, series CC

Designed for fast efficient operation of gate valve, globe valve, damper and other linear type valves.


Neles Easyflow heavy duty CC series piston-barrel linear actuator combine the benefits of high cycle life, a rugged construction and an extremally compact with unique range of feature and option. They are specially designed for fast operation of gate valve, globe valve, damper and other linear type valves.

Features and benefits

  • Cylinder barrel from extruded profile aluminium / steel with micro honed for extremely low friction.
  • Cushioning adjustable at both ends.
  • Piston & piston rod are guided by rigid bearings
  • Safe & easy maintenance
  • Suitable for various services
  • Rugged design
  • Wide thrust range.
  • Heavy duty mounting manufactured in steel & casting Iron.

Application

  • Factory automation & general process applications
  • High cycle life control and on-off applications
  • Emergency shutdown.

Technical specifications

Series: Pneumatic piston-barrel type linear actuator
Version: Double acting (For spring return version consult Neles)
Max. operating pressure: 10 bar

Force range:

3016 N to 96220N
Temperature range: -20 to +80 °C (For high & low temp. version, consult Neles)
Protection class: IP 67

Certificate:

SIL 3 capable
