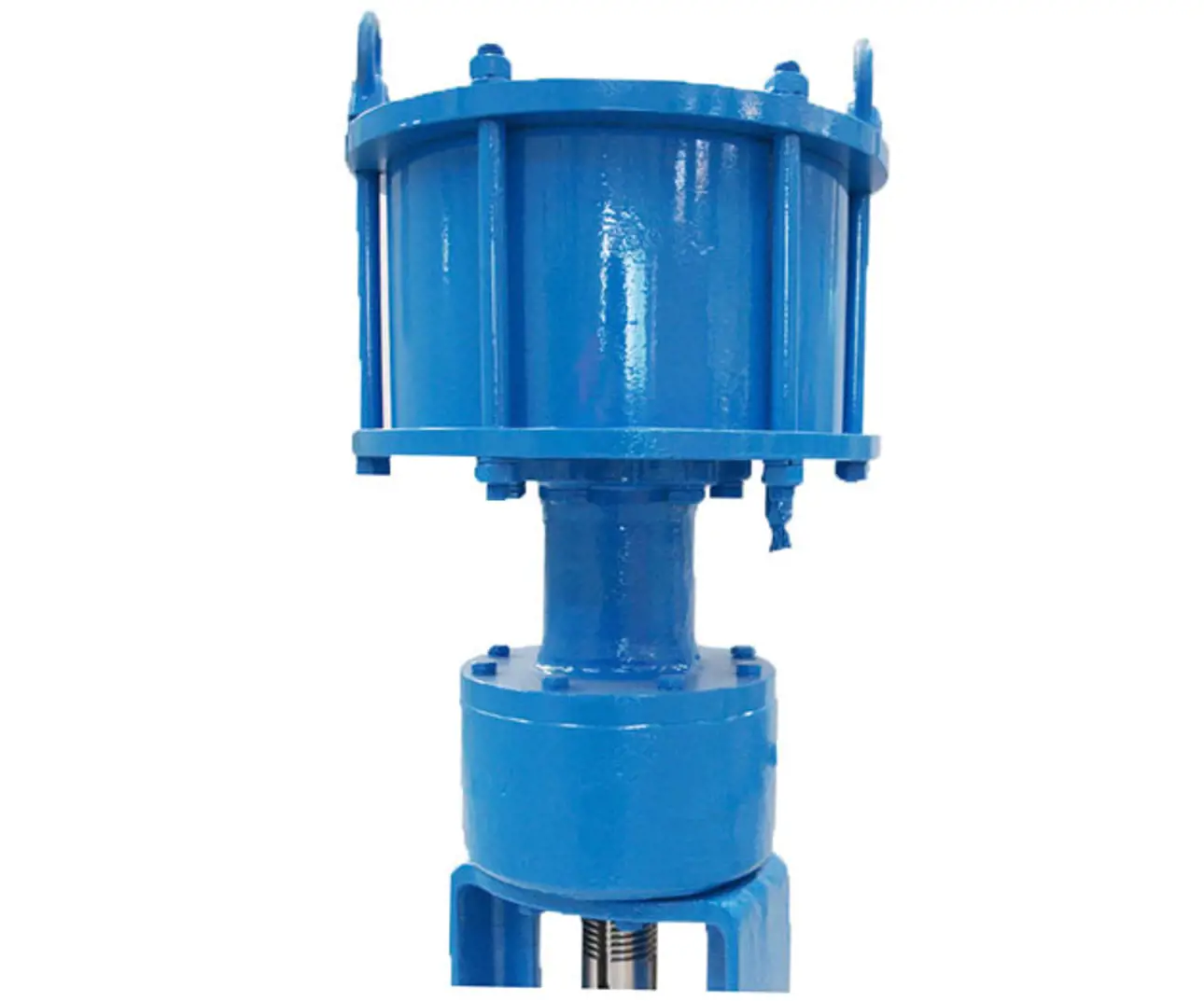

Neles™ pneumatic linear cylinder actuator, series VC

Safe and reliable operation to suit for different kind of applications


Neles double acting VC series piston type linear actuators are designed for use in both modulating control and on-off service. These actuators offer an extremely long cycle life and are well suited to operate linear valves with medium to high thrust requirements.

High control performance, low friction

Simple and cost effective design guarantee increased life time and reliability

Low cost, simple maintenance

Features

  • Heavy duty actuator designed for linear modulating control and on/off applications
  • Corrosion resistance coating against severe weather, chemical and petroleum environments
  • Wide thrust range
  • High thrust performance by self lubricating piston seal in cylinder
  • Optional handwheel for manual mode, volume tank and volume chamber available
  • Mechanical position limitation
  • Safe and easy maintenance
  • Suitable for various applications from general to severe service
  • Suitable for safety integrated systems up to and including SIL 3 in accordance with IEC 61508


Specifications

Type: Pneumatic cylinder actuator
Series: VC - double acting
Operating pressure: 2.0 - 10 bar / 29 - 145 psi
Temperature range: -30 … +85 °C / -22 … +185 °F
Output thrust: 27480 - 264860 N / 6177 - 59542 lb.f
