Profibus
A communications protocol
Available as Profibus DP (Distributed Peripherals) or PA (Process Automation) this protocol has become well accepted for both discrete and analog applications. Profibus DP features High speed data access capable of handling time critical functions while dramatically cutting wiring and commissioning costs. PA is recommended for process applications where intrinsically safe protection concepts must be used.
Profibus originated in the European market and has become a worldwide standard because of its performance attributes. Profibus consists of several variations which are designed for use in special applications. The two Profibus versions most commonly used are Profibus-DP (Distributed Peripherals) and Profibus-PA (Process Automation).
Profibus-PA was developed to connect directly into Profibus-DP and may be used in intrinsically safe applications. DP uses the RS485 physical layer while PA uses the IEC 61158-2 physical layer designed primarily for process applications.
- High speed data access capable of handling time critical functions.
- Networks up to 32 devices (up to 126 with repeaters) on a 4-wire network; (2 wires for signal and 2 wires for power).
- Trunk network may extend up to 4,000 feet (1220 meters) per segment.
- Dramatically cuts wiring costs and commissioning over conventional applications.
- Interfaces readily into newer control systems.
- Used extensively throughout Europe with support in North America.

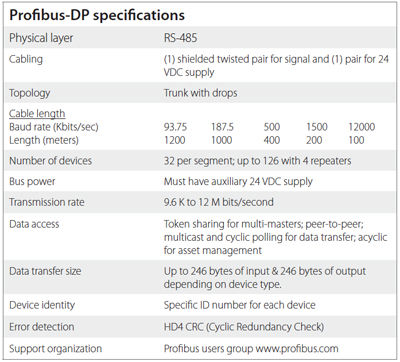

Profibus-DP is recognized as a high performance bus network capable of transmitting thousands of I/O point information in less than a few milliseconds. For that reason it has been used extensively for fast response control applications such as turbine servos and variable speed drives.

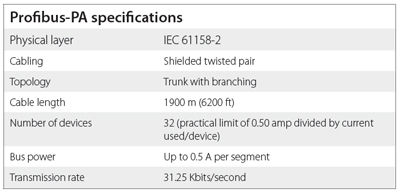

Profibus-PA was designed as a substitute for HART and 4 to 20mA signal transmission in the process industries. It uses function blocks designed around process industry requirements and uses the IEC 61158-2 physical layer, making it compatible with intrinsic safety circuits.

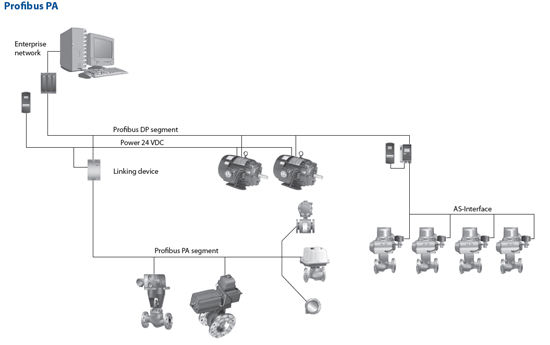

Profibus-PA links to the control architecture via Profibus-DP with a segment coupler or link as shown. Segment couplers are signal converters that adapt the RS-485 signals to the 61158-2 signal level. They are transparent from the bus protocol point of view. If segment couplers are used, the baud rate on the DP (RS-485) segment must be restricted to 45 Kbits/sec. The segment coupler also injects power into the PA network for the segment instrumentation.
Links are independent devices on the DP network which represent all devices connected to the 61158-2 segment. When PA segments are connected using links there is no limit to the baud rate on the DP segment which enables faster overall bus network performance.
- High speed data access capable of handling time critical functions.
- Networks up to 32 devices (up to 126 with repeaters) on a 4-wire network; (2 wires for signal and 2 wires for power).
- Trunk network may extend up to 4,000 feet (1220 meters) per segment.
- Dramatically cuts wiring costs and commissioning over conventional applications.
- Interfaces readily into newer control systems.
- Used extensively throughout Europe with support in North America.
Profibus-DP is recognized as a high performance bus network capable of transmitting thousands of I/O point information in less than a few milliseconds. For that reason it has been used extensively for fast response control applications such as turbine servos and variable speed drives.
Profibus-PA was designed as a substitute for HART and 4 to 20mA signal transmission in the process industries. It uses function blocks designed around process industry requirements and uses the IEC 61158-2 physical layer, making it compatible with intrinsic safety circuits.
Profibus-PA links to the control architecture via Profibus-DP with a segment coupler or link as shown. Segment couplers are signal converters that adapt the RS-485 signals to the 61158-2 signal level. They are transparent from the bus protocol point of view. If segment couplers are used, the baud rate on the DP (RS-485) segment must be restricted to 45 Kbits/sec. The segment coupler also injects power into the PA network for the segment instrumentation.
Links are independent devices on the DP network which represent all devices connected to the 61158-2 segment. When PA segments are connected using links there is no limit to the baud rate on the DP segment which enables faster overall bus network performance.
