AS-Interface products
AS-Interface products
Valve Communication Terminals
Enclosures
| Model # | Description | |
|---|---|---|
 |
JX JM units | Junction Module enclosure for bus components |
 |
FN units | FieldBlock enclosure for bus components |
 |
FR units | FieldRack enclosures for bus components |
Drop Connectors
| Model # | Description | Manual |
|---|---|---|
| DR465005A | Protected (1-1; 240mA); DIN Rail | N/A |
| DR461017A | Protected (1-1; 240mA) | N/A |
| DR465001A | Passive (1-2; No trip current); DIN Rail | N/A |
| DR461059A | Passive (1-2; No trip current) | N/A |
| DR465032A | Protected (1-1; 100mA); DIN Rail | N/A |
| DR461145A | Protected (1-1; 100mA) | N/A |
| DR465007A | Protected Drop Switch (1-1; 240mA); DIN Rail | N/A |
| DR461066A | Protected Drop Switch (1-1; 240mA) | N/A |
| DR465033A | Protected Drop Switch (1-1; 100mA); DIN Rail | N/A |
| DR465036A | Passive Multi-drop (1-6); DIN Rail |  |
| DR465040A | Protected Multi-drop (1-6; 240mA); DIN Rail | |
| DR465044A | Switched Protected Multi-drop (1-6 240mA); DIN Rail | |
Power supplies / Power conditioners
| Model # | Description | Manual |
|---|---|---|
| PS459002A | 2.8 Amp AS-I Power Supply | |
| PS459004A | 8.0 Amp AS-I Power Supply | N/A |
| PS459046A | 8.0 Amp 30VDC Power Supply C1D2 Note: Does not have AS-i data decoupling Ideal for use with gateways below marked “1 power supply” |
N/A |
| PS459042A | 8.0 Amp 30VDC Power Supply Note: Does not have AS-i data decoupling Ideal for use with gateways below marked “1 power supply” |
N/A |
| PS461089A | Redundant Inputs Power Conditioner | N/A |
| PS461090A | Daisy Chain Inputs Power Conditioner | N/A |
| PS465025A | Daisy Chain Inputs; DIN Rail Power Conditioner | N/A |
| PS465024A | Redundant Inputs; DIN Rail | N/A |
Masters / Gateways
| Model # | Description |
|---|---|
| GW458159A | AS-i to Profibus-DP (New) |
| GW458110A | AS-i to Profibus-DP, C1D2 |
| GW458160A | AS-i to Profibus-DP, Dual Channel (New) |
| GW458112A | AS-i to Profibus-DP, Dual Channel, C1D2 |
| GW458161A | AS-i to Profibus-DP, Dual Channel (1 power supply) (New) |
| GW458114A | AS-i to Profibus-DP, Dual Channel (1 power supply), C1D2 |
| GW458116A | AS-i to ProfiNet |
| GW458086A | AS-i to Modbus RS485 |
| GW458126A | AS-i to Modbus RS485, C1D2 |

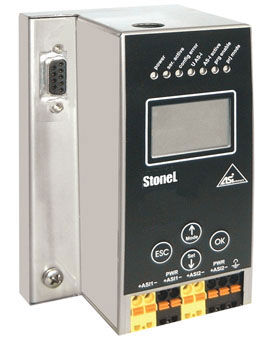

| GW458088A | AS-i to Modbus RS485, Dual Channel |
| GW458128A | AS-i to Modbus RS485, Dual Channel, C1D2 |
| GW458124A | AS-i to Modbus RS485, Dual Channel (1 power supply) |
| GW458130A | AS-i to Modbus RS485, Dual Channel (1 power supply), C1D2 |
| GW458132A | AS-i to Modbus+ |
| GW458162A | AS-i to Ethernet/IP and Ethernet TCP/IP (Modbus) (NEW) |
| GW458163A | AS-i to Ethernet/IP and Ethernet TCP/IP (Modbus), Dual Channel (NEW) |
| GW458164A | AS-i to Ethernet/IP and Ethernet TCP/IP (Modbus) , Dual Channel (1 power supply) (NEW) |
| GW458136A | AS-i to Ethernet Modbus TCP C1D2 |
| GW458138A | AS-i to Ethernet Modbus TCP, Dual Channel C1D2 |
| GW458140A | AS-i to Ethernet Modbus TCP, Dual Channel (1 power supply) C1D2 |
| GW458148A | AS-i to Ethernet/IP C1D2 |
| GW458150A | AS-i to Ethernet/IP, Dual Channel C1D2 |
| GW458152A | AS-i to Ethernet/IP, Dual Channel (1 power supply) C1D2 |
| GW458094A | AS-i to DeviceNet |
| GW458118A | AS-i to DeviceNet C1D2 |
| GW458098A | AS-i to DeviceNet, Dual Channel |
| GW458120A | AS-i to DeviceNet, Dual Channel, C1D2 |
| GW458096A | AS-i to DeviceNet, Dual Channel (1 power supply) |
| GW458122A | AS-i to DeviceNet, Dual Channel (1 power supply), C1D2 |
| GW458074A | AS-i Master for Allen Bradley ControlLogix PLC’s |
I/O and Relay I/O Modules
| Model # | Description | Manual |
|---|---|---|
| IO96Y03FA | 4DI/4DO I/O Module | |
| IO96W03FA | 4DI/4DO I/O Module DIN Rail | |
| IO97W02FA | 4DI/3DO (extended addressing); I/O Module DIN Rail | |
| IO96W08FA | 4DI/4DO I/O Module (2 Relay Out – Independent); DIN Rail | |
| IO96W11FA | 4DI/4DO I/O Module (2 Relay Out – Interlocking); DIN Rail | |
| IO97W07FA | 4DI/3DO (extended addressing) I/O Module (2 Relay Out – Independent); DIN Rail | |
| IO97W12FA | 4DI/3DO (extended addressing) I/O Module (2 Relay Out – Interlocking); DIN Rail | |
| IM461050A | 4DI/4DO I/O Module | |
| IM465011A | 4DI/4DO I/O Module; DIN Rail | |
| IM461124A | 4AI (IP20); DIN Rail | N/A |
| IM461122A | 4AO (IP20); DIN Rail | N/A |
Accessories
| Model # | Description | Manual |
|---|---|---|
| AC465026A | Stonel Repeater; DIN Rail | |
| AC461091A | Stonel Repeater | |
| AC461142A | Tuner | N/A |
| AC461150A | Tuner, C1D2; DIN Rail | N/A |
| AC461144A | Terminator – Passive, no current consumption | N/A |
| PG460002A | Handheld Addressing Unit | N/A |
| DMFSS | Training/Demo Kit | N/A |
| CK464001A | Commissioning Kit and Software | N/A |
| AC464010A | Analyzer | N/A |
| SW462004A | AS-i Control tools software with diagnostics | N/A |
| SW462008A | AS-i Control tools software with cable for stainless steel gateways | N/A |
| SW462006A | AS-i Control tools software with cable for AB Masters | N/A |
| AC462014A | AS-i Handbook | N/A |
