Valmet ESP

Valmet Electrostatic Precipitator is a cost-effective and energy-efficient solution for removing dust particles from flue gases. This heavy-duty solution uses high-voltage electrical fields (up to 150 kV) and is suitable for a wide range of temperatures - up to 420°C for large capacities. The solutions range from small upgrades to very large new installations.

Dust emission guarantee < 10 mg/Nm3

Equipped with the only well-known DCS-based ESP control system

Fully integrated into the main DCS
Online operation monitoring via remote access
Process and power optimization and analytics services vwith Valmet Industrial Internet (VII) solutions

High product quality of emission and collection electrodes ensured with in-house production

Innovative control unit and process optimization

Combination of Valmet’s process and automation technology enables unique ESPs with Distributed Control System (DCS) based monitoring and controlling applications. This features a full remote-mode capability to support the customers’ process optimization, energy efficiency and maintenance anticipation targets.

With the introduction of the Valmet Industrial Internet applications, process optimization has entered a new level.

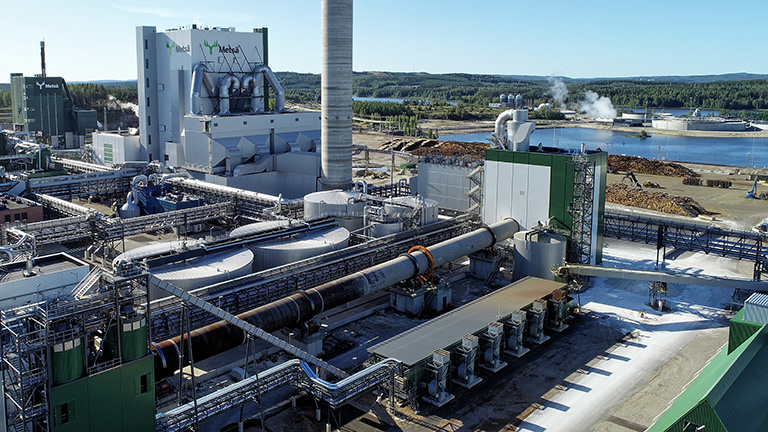

Aanekoski ESPs 768x432.jpg

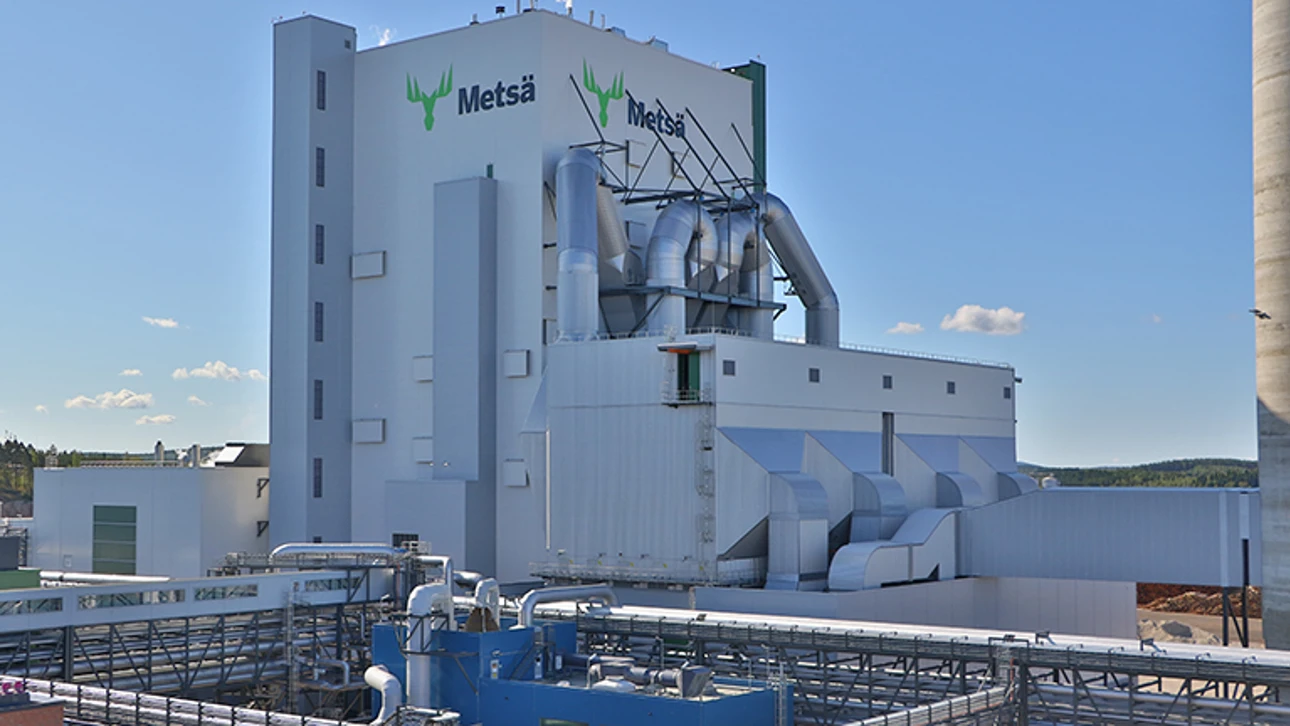

Case Metsä Fibre, Äänekoski mill, Finland ESPs for recovery boiler and lime kiln
Start-up: 2015
Fuel: Black liquor (recovery boiler), gasified bioproduct gas (lime kiln)
Solution delivered: Recovery boiler 7200 tDs/d: four chambers, five field ESP units Lime kiln 1260 t/d: one chamber, five field ESP units Valmet DNA ESP control
Emission guarantee: < 25 mg/Nm³
Key benefits: Low dust emissions. Significant energy savings gained thanks to the introduction of a Valmet Industrial Internet based Power Optimization application.

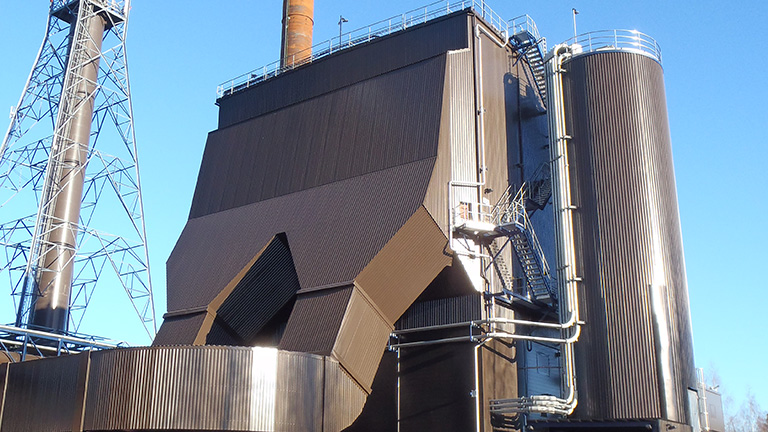

JKL PB030001 768x432.jpg

Case Jyväskylän Energia, Alva, Finland ESP for combined heat and power plant
Start-up: 2015
Fuel: wood and peat
Technical details: Gas flow: 141.5 Nm³/s Temperature: 155 ^oC Dust (in): 11.3 g/Nm³ @ 2.5% O₂ moisture
Emission guarantee: < 20 mg/Nm³
Key benefits: Meeting the industrial emission directive limits and thus expanding the lifetime of the power plant.

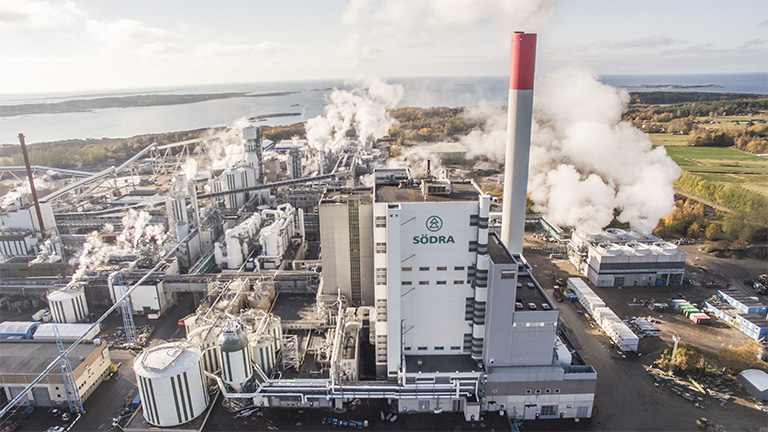

Varö Mill general 2 768x432.jpg

Case Södra Cell, Värö pulp mill, Sweden ESP upgrade
Start-up: 2016
Fuel: Black liquor (recovery boiler)
Solution delivered: Adding a third ESP unit Heat recovery
Key benefit: Efficienctly meeting the needs of major expansion the the pulp with increased recovery boiler capacity from 2500 tds/d to 4000 tds/d.

Air emission control

Optimal air emission control solutions provides the highest environmental performance and ability to meet set emission limits. Additionally, it significantly improves energy and process efficiency.

Electrostatic Precipitators

Valmet Electrostatic Precipitators provide effective, yet a highly cost and energy-efficient solution for removing dust particles and other pollutants.

Our expertise is at your service

Our focus is to bring your performance forward. Our expertise in sustainable energy production and emission control is at your disposal. Get in touch with our specialists through your local Valmet office, or the link below.
