Valmet coating stations

High-quality and functional coating

Valmet's innovative coating solutions are suitable for all paper and board grades. High performance and functionality are common characteristics for the entire range of coating technology. Taking advantage of Valmet's expertise in choosing the correct kind of coating and drying concepts means that your coating machine will produce high-quality board and paper in a cost-effective and environmentally sound way.

Combining different coating methods

The different coating application methods are suitable for different purposes. Sometimes you need more than one coating layer applied with more than one coating type of a coating head to achieve the optimal results. In the following image you can see the different kinds of benefits of two different coating methods: blade coating and curtain coating. Blade coating improves smoothness and curtain coating improves coating coverage - together they delvier immaculate coating quality!

Profile variation with different coating methods

Profile variation with different coating methods is quite big. It goes hand in hand with the previous example of combining different coating methods. Peak-to-peak coat weight variation has a great effect on the prinnting quality in the later stages of the process. Let our experts help you choose the best solution for you!

Want to talk to our coating experts?

If you wish to get further information like technical specifications, need a quotation, or wish to discuss different solutions, fill in the contact form and our experts will contact you shortly.

Contact our experts

Learn more about our OptiCoat solutions

OptiCoat Layer curtain coating

The OptiCoat Layer multilayer curtain coater applies extremely thin – or thick - and uniform layers simultaneously all within one, compact coating station. It is equally suitable for both board and paper machines, regardless of their speeds and widths. The multilayer concept offers several advantages over single-layer curtain coating and other conventional coating methods.

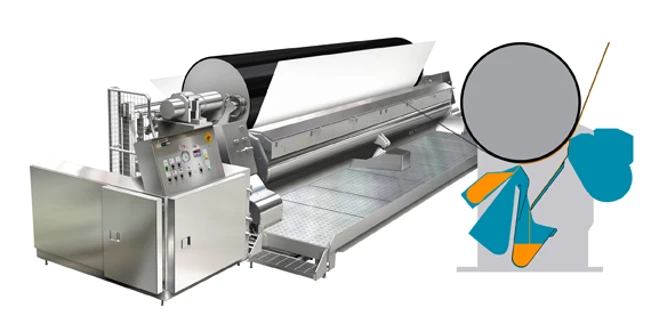

OptiCoat Jet blade coating

OptiCoat Jet coating provides very uniform and skipfree coating quality. It gives the best possible surface smoothness compared to any other coating method.

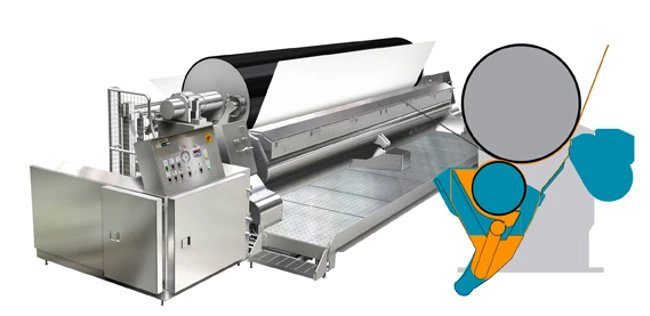

OptiCoat Roll metering roll coating

In OptiCoat Roll coating an excess amount of coating color is applied to the paper surface with the applicator roll. Final coat weight is then controlled by a metering blade or rod. The coating quality is very uniform and smooth.

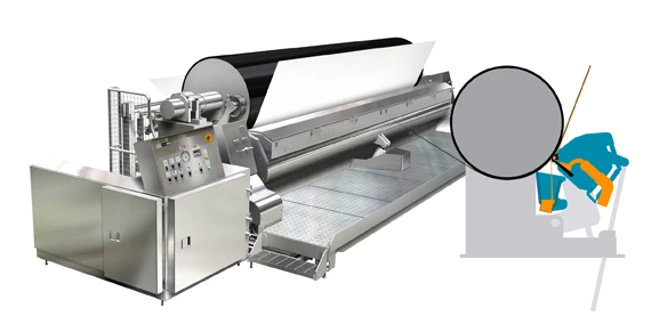

OptiCoat Short Dwell coating | valmet.com

OptiCoat Short Dwell is a blade or rod coater with short dwell time application, especially well-suited for high-speed LWC coating. Short dwell time means that water penetration into base paper is minimized. This enables archieving low coat weights easily.

OptiSizer Film sizing

OptiSizer Film offers a functional and innovative design, based on know-how and long experience. Its simple and reliable design results in easy operation, installation and fast initial start-up.
