Customer case:

Setting a new start-up record at Sun Paper Beihai PM1

Oct 3, 2021

In the fall of 2021 Sun Paper’s Beihai Mill successfully started up their new Valmet-supplied fine paper making line. The co-operation between Valmet and Sun Paper Beihai Mill has been going well, and during the start-up this world’s widest fine paper production line set a new record for the fastest start-up of fine paper machines: it took only 2 hours and 28 minutes from stock to reel. Sun Paper’s goal was to build a world-class mill in Beihai and the new PM1 is good addition to the mill’s operations.

Investment of Beihai site is an important action of Sun Paper Group’s upgrade and transformation, aiming to achieve synergistic interaction with the Sun Laos raw material base. The smooth start-up of PM1 allows us to move a big step towards the overall goal of Beihai base. I appreciated the hard work of the project teams from both parties and thank Valmet for its professional services as always. I wish the good cooperation continues in the future."

Li Lu, Chairman of Sun Paper Holding Group

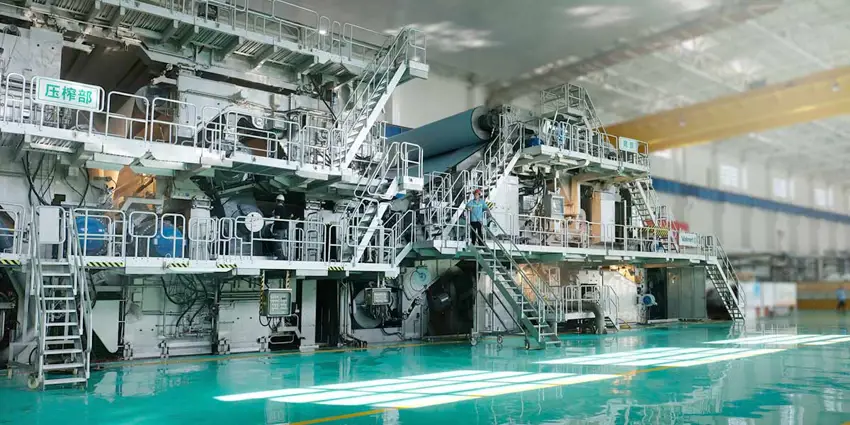

World record fast start-up of Valmet supplied world's widest fine paper machine Sun Paper Beihai PM1

Summary

Location	Sun Paper in Beihai, Guangxi providence, China
Solution	A complete fine papermaking line with stock preparation, extensive automation scope and recovery boiler
Results	The PM1 started up successfully setting the new fine paper making line start-up world record for the fastest start-up. The paper making line is producing 50-100g/m2 uncoated woodfree paper grades.
Keywords	Paper & board, New lines, China

Technical data

Grades	Uncoated Woodfree
Basis weight	50 - 100 g/m²
Reel width	10,515 mm
Design speed	1,800 m/min
Capacity	1,801 t/d
Delivery Scope	OptiFlo Gap headbox OptiFormer Gap forming section OptiPress Linear press section OptiRun Single dryer section OptiSizer Film sizer OptiCalendar Hard calendering OptiWin Drum winders with Two-drum winder Process air systems OptiReel Center reel OptiCart Stream parent roll handling Quality control systems (QCS) and Process DCS Industrial Internet Stock Preparation

OptiConcept M - sustainable papermaking

OptiConcept M is a modular paper machine concept for sustainable papermaking. OptiConcept M family suits containerboard, cartonboard and fine paper production – simple, well-functioning solutions that meet customers’ needs.

OptiPress Linear

OptiPress Linear, a double-nip press section with shoe press and a linear web run, is an ideal solution to fulfill papermakers’ requirements for effective wet pressing. Runnability bottlenecks have been removed with intelligent design - using shoe press technology, full-width tail threading, and having no open draws.

OptiSizer Film sizing

OptiSizer Film offers a functional and innovative design, based on know-how and long experience. Its simple and reliable design results in easy operation, installation and fast initial start-up.
