Customer case:

Reducing costs and increasing production with new layering headbox at PT. Aspex Kumbong PM 3

Aug 14, 2024

In 2023 Valmet successfully supplied a grade conversion rebuild for PT. Aspex Kumbong mill (part of KORINDO Group), located in Cileungsi, West Java, Indonesia for their PM 3 from newsprint to light fluting and liner grades. The rebuild consisted of a new OptiFlo Layering Gap headbox and improvements in the press section, which led to increased production and better quality that helped to improve profitability.

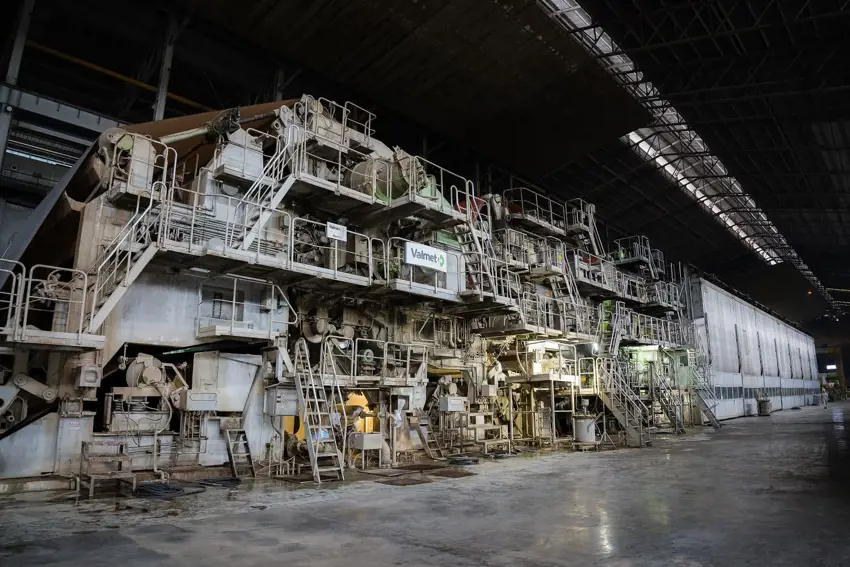

OptiFlo Layering Gap headbox at PT. Aspex Kumbong PM 3

All guaranteed values have been reached and quality has been good from the beginning. CD profiles are even, orientation profiles are good, and uniformity in customer rolls has been very good. After the rebuild we have been able to dye only the print ply, which has resulted in significant cost savings in dye and retention chemicals. Maintenance has been “easier than ever”, especially the headbox tilt and gap adjustments get praise for allowing easy inspection and cleaning.

Location	Cileungsi, West Java, Indonesia
Solution	New OptiFlo Layering Gap headbox for producing two ply containerboard grades. Valmet Press Run Web Stabilizer to reduce sheet breaks, improve runnability, avoid wrinkling and reduce draw between the press and dryer section.
Results	The PM 3 grade conversion rebuild was a success for PT. Aspex Kumbong mill. The targets of increased production, improved profitability and better quality were successfully met. Their customers have accepted the new products and their quality and expansion to new markets and customers continues.
Keywords	containerboard, recycled fluting, recycled liner, Asia Pacific, Indonesia, headbox, press section, layering headbox

Technical data

Grades

Containerboard: recycled fluting, recycled liner

Basis weight range 45 - 200 gsm

Technical information

Wire width: 7,150 mm

Design speed: 1,500 m/min

Start-up

Feb 2023

OptiFlo Layering Gap headbox

The two-layer OptiFlo Gap headbox can produce a two-ply sheet using a gap forming unit. In two-layer headbox applications, it is very important to guarantee layer coverage. All hydraulic components of the headbox have been designed to minimize slice jet and board sheet disturbances.

Press improvements

With an improvement process you can reduce your cost per tonne produced through savings in raw materials, energy, and maintenance costs. We offer a variety of customized solutions that will improve the dry content of the pressed sheet, solve runnability problems, and address a variety of press section issues.

Read the whole customer success story of the project here

Layering headbox increased production and reduced costs at PT. Aspex Kumbong PM 3

PT. Aspex Kumbong mill successfully completed a grade conversion rebuild for their PM 3 from newsprint to light fluting and liner grades in 2023. The Valmet supplied rebuild consisted of a new OptiFlo Layering Gap headbox and improvements in the press section, which allowed the mill to increase production and upgrade quality to improve profitability.
