Casmatic S15

Bundler

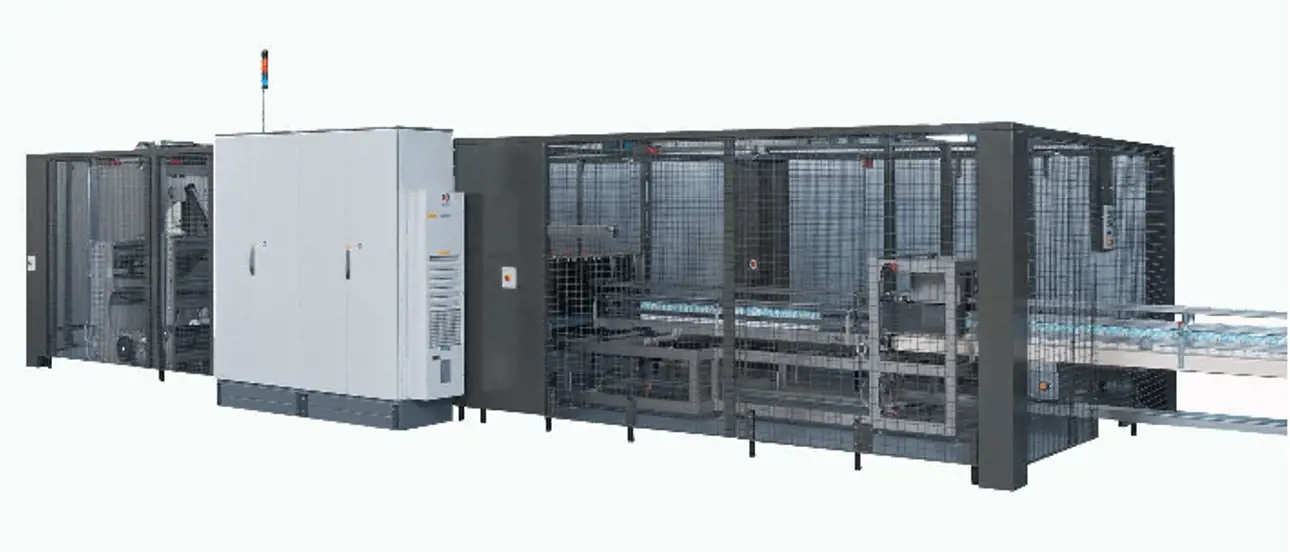

Casmatic S15 Bundler 1.jpeg

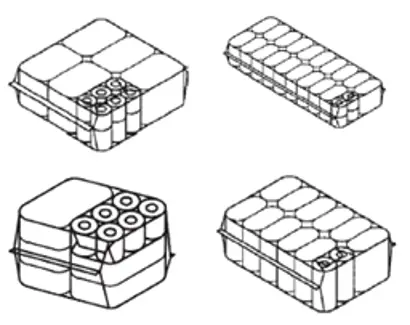

The S15 bundler has the capability to take all package configurations (no single rolls) with cores up or cores down of bathroom tissue and household towel and overwrap them into a finished bundle in a variety of combinations at speeds up to 13 bundles per minute. The infeed unit can be equipped with or without the stacking system for two or three-layer bundles, increasing production flexibility even further. The top seal is made by hot air while a cut seal system with four flat sealing wires and a steel blade to cut the poly guarantee a high quality of the bundle and package isolation.

General information

Production year 2009
Location Italy
Operation status Not in production
Availability Immediate

Technical details

Electrical platform Siemens platform
Type of products
  • Maximum production speed: up to 13 bundles/minute
  • Minimum bundle size: width 345 mm - height 180 mm - length 180 mm
  • Maximum bundle size: width 1000 mm - height 460 mm - hength 800 mm (single stroke
  • Maximum poly reel width: 2750 mm
Speed/production rate 13 bundles/min

Additional information

Optional/Upgrades available for installation TIP Upgrade elevator S15
