NOTE: Although doctors are used with rolls or dryer cans, the term "rolls" will be used to refer to both in the following discussion.
Foreign material can accumulate on rolls, affecting the quality of the web and damaging soft rolls. Doctors are used to scrape this material off the rolls. Doctors are also used to redirect the web to prevent wrapping around rolls (especially during threading or after a web break). Web wrapping can damage equipment and increase the risk of injury to personnel from flying objects.

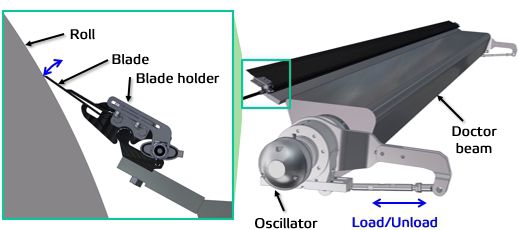

Blade type doctor assemblies typically consist of a support beam and blade which span the length of the roll face. Whenever the roll nip is closed and rotating, the blade should be loaded against the roll. Where applicable, the entire doctor assembly should be oscillating in a cross machine direction. This oscillation promotes a more uniform wear on the roll and blade.

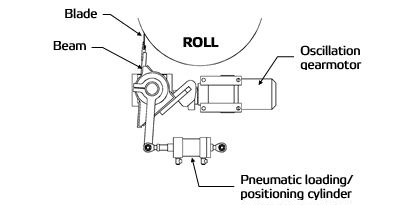

The doctor blade is typically loaded against the roll using one of the following methods:
During oscillation, the entire doctor assembly is typically moved back and forth about ±.375" in a cross machine direction. Oscillation is common, but not present on all doctors. Oscillation is typically accomplished using one of the following methods:

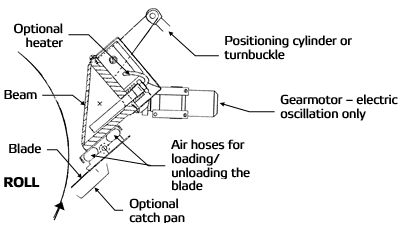

All roll doctors have at least two positions: loaded and unloaded. In designs where the position of the beam does not move during loading (ie: air hose loading), there is usually a way to re-position the beam. A pair of turnbuckles are used when manual adjustment of the beam is sufficient (typically used for installation). A pair of cylinders are used when re-positioning is done more frequently (such as during threading or blade changes). This may be due to operating needs, space limitations, or maintenance.
There are several options which can be combined with most roll doctor designs. For instance:
Refer to the project drawings and bills of material for specific design details for the doctor which was supplied for your machine. For typical doctor maintenance instructions, read the Up & Running article found in the "Field Report - Roll doctor maintenance" article in the Related Links section.
For assistance with improving your doctoring process, contact your Valmet representative.
